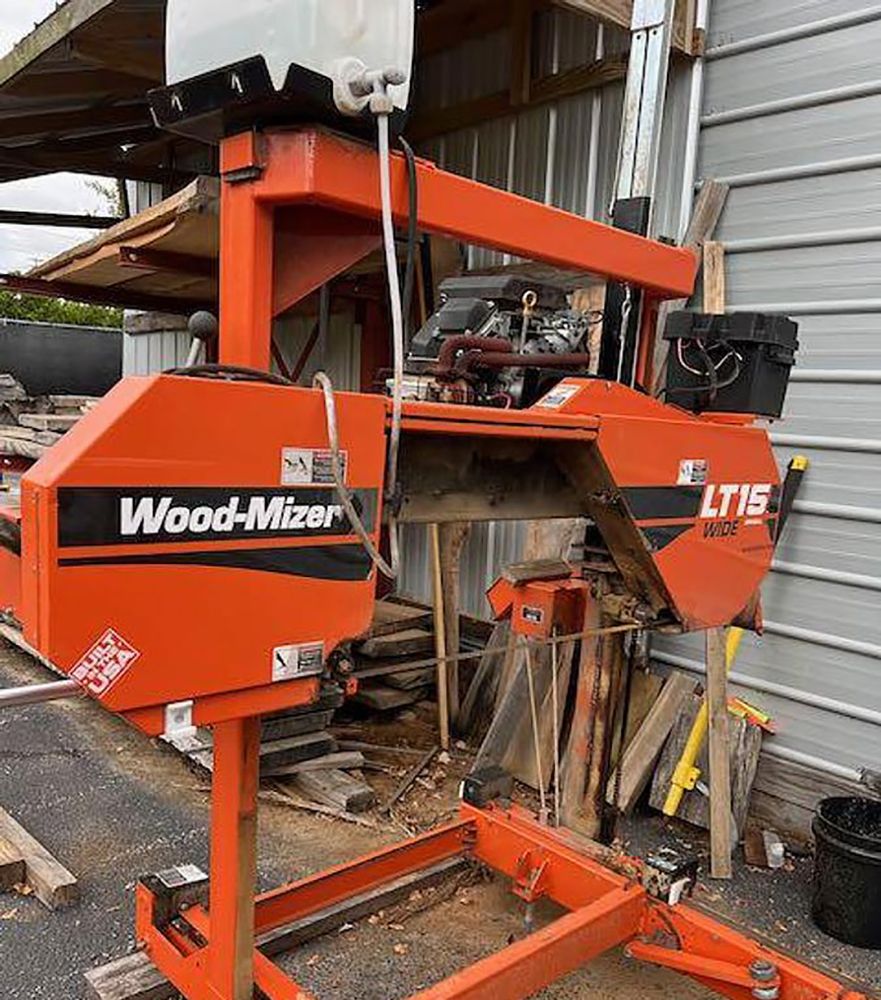

Wood-Mizer LT15 Wide Horizontal Saw Mill

Power Selections :
25HP (18.6kW) Kohler gas

Cutting Capacity:
Max. Log Diameter 36" (.91m)
Max Cant Width 29" (.73m)
Production Rate up to 375 bd ft/hr (.88m³/hr)
Max Depth of Cut 10 1/2" (.26m)
Max Log Length 17' 8" (5.4m)
Log Weight 4,400lbs (1,996kg)

Blade:
Blade Length 176" (4,470mm)
Blade Guides Style Roller Guides
Blade Lubrication System 5Gal. (18L) Water Tank with On/Off Valve
Blade Tension System Cam Easy Tension Handle
Blade Thickness .042" (1.07mm)
Blade Width 1 1/4" (32mm)
Blade Guides Size 1 1/4" (31.75mm) 1 1/2" (38.10mm)

Blade Wheels:
Blade Wheel Diameter 19" (483mm)
Blade Wheel Type Belted Blade Wheels


Head Features and Options:
Operator Location :
Head Forward/Reverse Crank Feed
Power Feed
Head Up/Down Hand Crank
Blade Engagement Manual Lever
Blade Guide Arm Adjusted with Manual Lever

Bed Features and Options:
Side Supports 6 Reinforced Side Supports with heavy duty rollers
Log Turning Manual
Log Loading Manual
Log Clamping 2 Adjustable Log Clamps

Machine Dimensions and Requirements:
Mobility Stationary
Delivery Methods Pallet

Weight (heaviest power option) 1,530lbs (694kg)
Length 20' 4" (6.2m)
