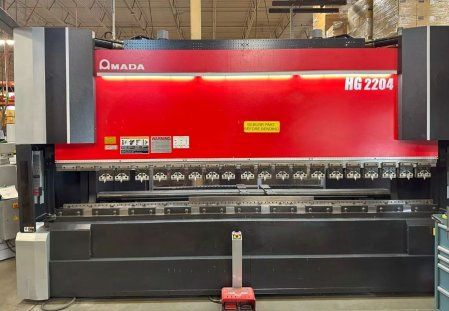

Amada HG2204 247 tons

Press Force: 247 tons
Maximum Bend Length: 169.3"
Distance Between Frames: 148"
Stroke Length: 9.8"
Open Height (no holders): 20.5"
Throat Depth: 17.7"
Machine Stroke: 9.8"
Table Height: 37.4"
Approach Speed: 8.7"/s
Bending Speed: 0.79"/s
Return Speed: 9.8"/s
Number of Cylinders: 3
Hydraulic Fluid Capacity: 33 gal
Nominal Supply Current: 100 A
Provided Power: 36 kVA
Control Type: AMNC 3i
Program Capacity: Unlimited via net
Possible Axis Under CNC Control: 11
RAM: D1 & D2
Backgauge: L1 & L2
Backgauge Horizontal: Y1 & Y2
Backgauge Vertical: Z1 & Z2
Ram Repeatability: 0.00004"
Backgauge Speed (L-axis): 1,181"/min
Backgauge Speed (Y-axis): 3,543"/min
Backgauge Speed (Z-axis): 787"/min
Machine Length: 254.3"
Machine Width: 110.2"
Machine Height: 127"
Machine Weight: 44,092 lbs
