Bystronic Bystar 3015 Byvision CNC Control

Reference #32430

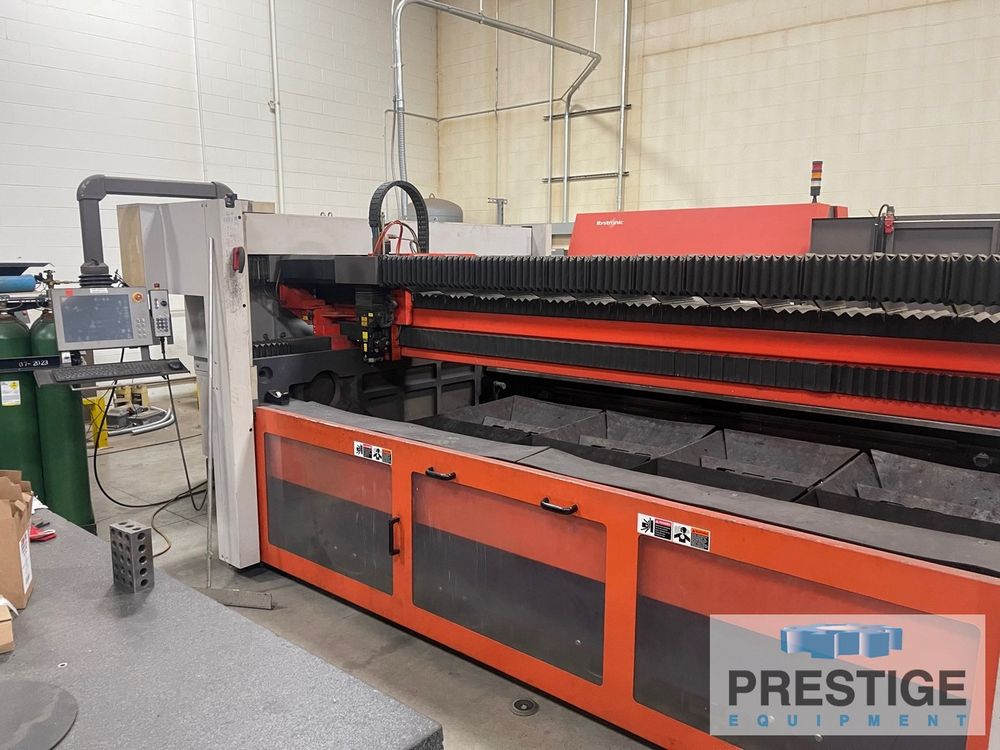

Bystronic Bystar 3015 6 KW Flying Optic CO2 CNC Laser

FEATURES:
Rebuilt by Bystronic 2016

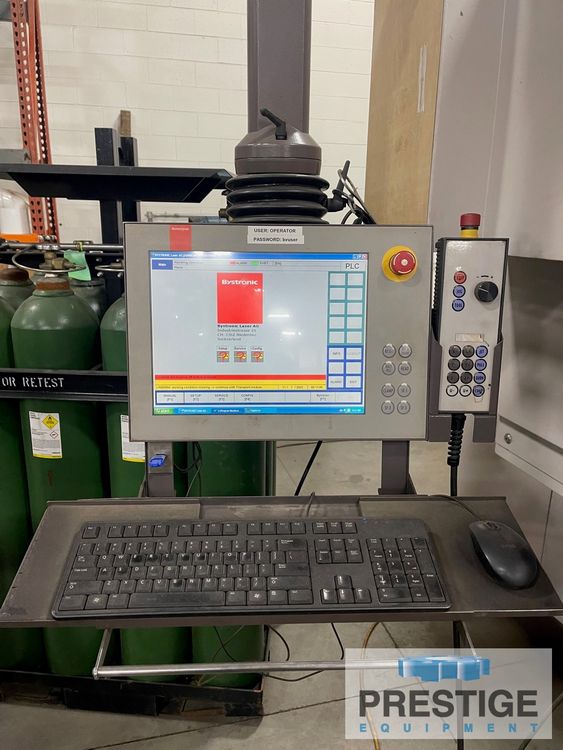

Byvision CNC Control
ByLaser 6 KW Resonator
Automatic Shuttle Table
ByLoader

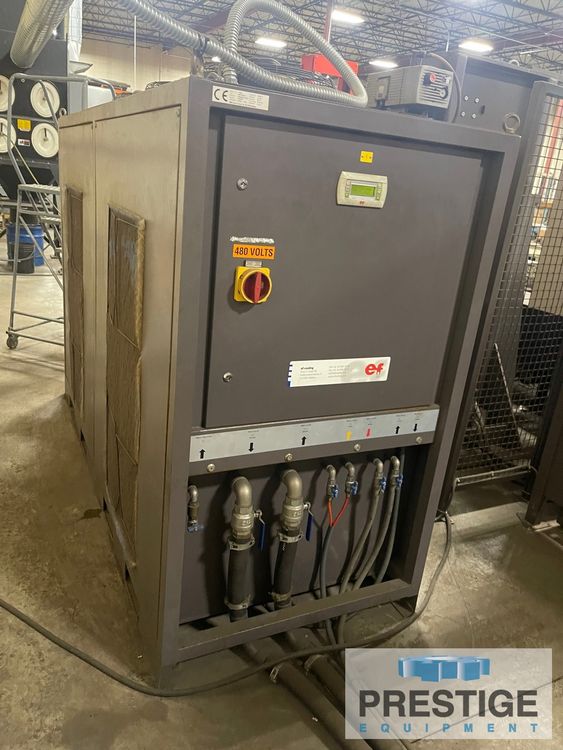

Chiller Unit

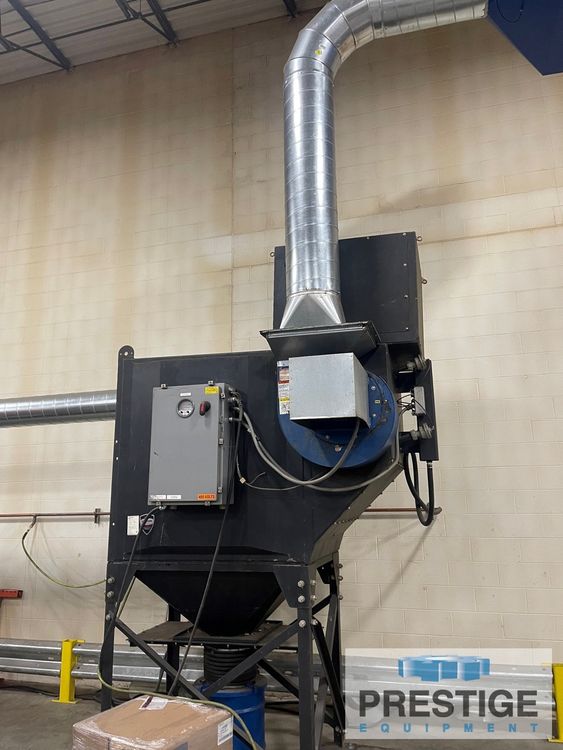

Dust Collector

CAPACITY:
Maximum Laser Output .................. 6000 Watts
Max. Material Thickness, MS & SS ...... 1"
Max. Material Thickness, Aluminum ..... .590"
X-Axis Travel ......................... 120"
Y-Axis Travel ......................... 60"
Z-Axis Travel ......................... 8"
Max. Workpiece Weight ................. 2,000 Lbs
Max. Positioning Speed Axis Parallel .. 3,150 IPM
Max. Positioning Speed Simultaneous ... 4,448 IPM
Max. Electrical Consumption ........... 74 KW
Operating Voltage ..................... 480 Volt
Approximate Machine Shipping Weight ... 31,000 Lbs

EQUIPPED WITH:
Byvision CNC Control
ByLaser 6 KW Resonator
Automatic Shuttle Table
ByLoader
Chiller Unit
Dust Collector

NOTE:
Rebuilt by Bystronic 2016 (Bystronic Renaissance Program)
Inspect in Plant Under Power
