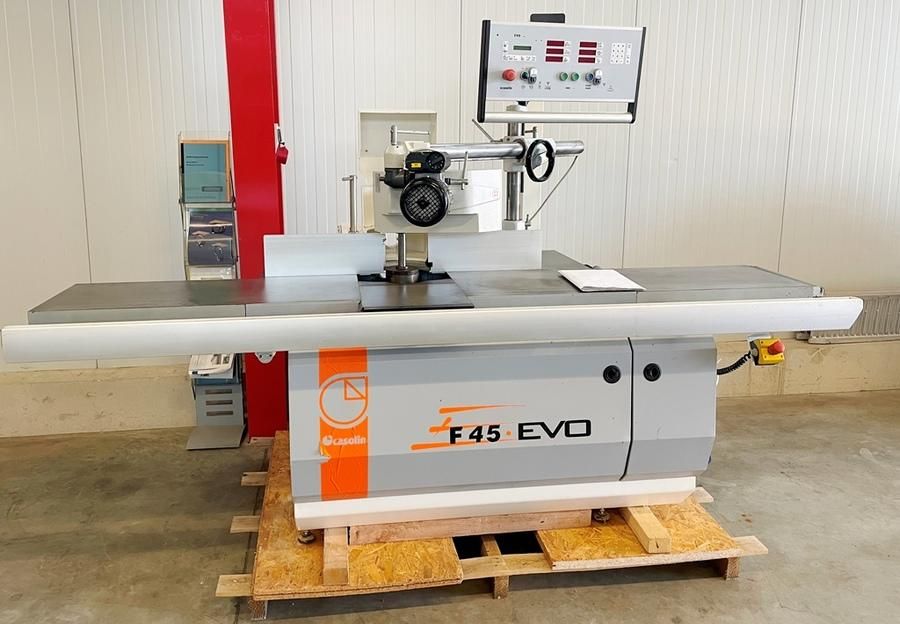

Casolin F 45 KL EVO

Spindle moulder / swivel spindle milling machine
Very heavy version with full equipment
Control unit EVO EL 2 with programming functions
The body of the machine consists of one part
Spindle swivels +/- 45.5° on both sides
4-axis control EVO
Spindle diameter 30 mm
Effective height of the spindle 140 mm
Maximum tool diameter for profile milling 250 mm
Maximum tool diameter for tenoning 300 mm
Motor power 7.5 kW
Direction of rotation right/left
Speeds 3000 / 4500 / 6000 / 8000 / 10000 rpm
Table with extensions 2600 x 920 mm LW
Including 3-roller feed unit Maggi
2 suction connections each 120 mm diameter
Transport dimensions approx. 2600 x 1500 x 2000 mm LWH
Weight approx. 1350 kg
