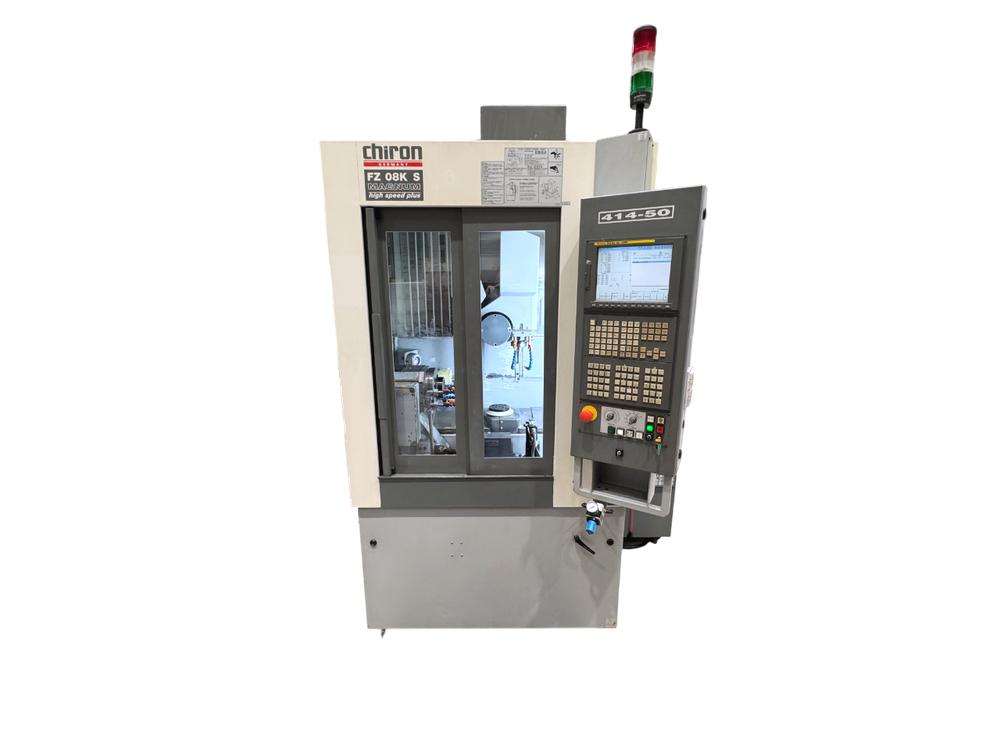

Chiron FZ 08K S Magnum High Speed Plus (HSP) 7

CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP)



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2007
CNC control : FANUC 18i-MB5
Number of axes : 7
Stroke X axis : 450 [mm]
Stroke Y axis : 270 [mm]
Stroke Z axis : 310 [mm]
Traversing feeds X, Y and Z axes : 75000 [mm/min]
Max. bar diameter in turning spindle : 32 [mm]
Main spindle max. speed : 8000 [rpm]
Main spindle max. power : 12 [kW]
Angular A axis stroke : 360 [°]
A axis indexing precision : 0.001 [°]
B axis swivelling stroke : -20° / +115 [°]
B axis indexing precision : 0.001 [°]
Spindle type : HSK40
Max. spindle speed : 30000 [rpm]
Tool changer magazin number of stations : 40
Part turnaround by robot (6th side machining) : Yes
RS232 Interface : Yes
Total power required : 17 [kVA]
Supply voltage : 400 [V]
Dimensions : 1500 x 2600 x 2300 [mm]
Weight : 3400 [Kg]

More information available upon request.
