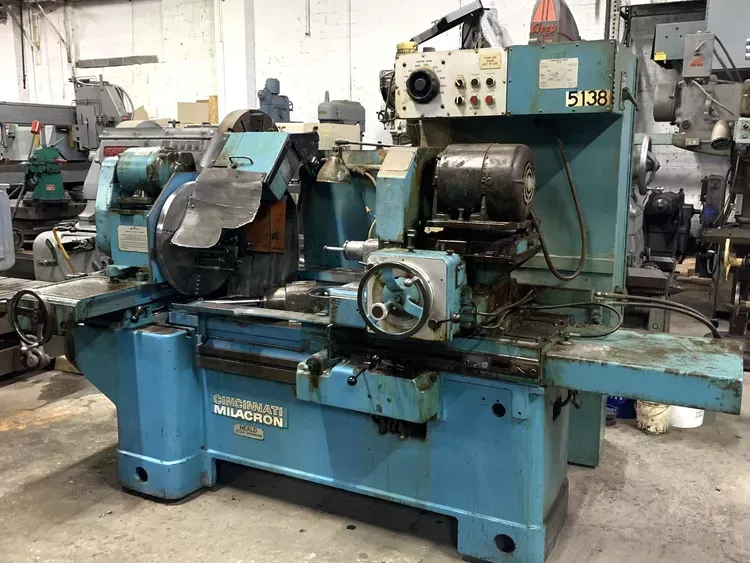

Cincinnati HEALD 273A

CINCINNATI HEALD 273A

ID universal grinder
Extended bed
Front of wheelhead dovetail to face of workhead flange: 38″
Swing over table: 20″
Swing with workhead swiveled 90°: 16″
Angular adjustment of workhead: 90°
Workhead cross slide travel: 11.5″, power or manual
Table travel max: 20″
Wheelhead cross slide travel: 1.5″
Table speed range: 0 to 18 FPM
Rapid traverse of table: 18 FPM
Workhead speeds variable: 0 to 500 RPM
Coolant system
Dressing attachment
Hydrostatic ways
Machine dimensions (FB x RL): 62″ x 104″
Machine height: 77″
Estimated weight: 7,000 lbs
Wired 440V 3-phase
Two Red Head ID spindles rebuilt by Sopko
4″ long spindle: 27,000 RPM
10″ long spindle: 15,300 RPM
