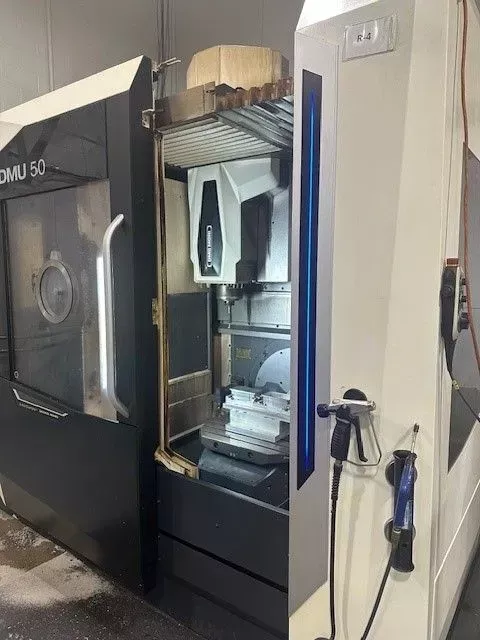

DMG MORI DMU 50 GEN III 5 Axis

DMG MORI DMU 50 GEN III
Year: 2020

X-axis travel 25.6"
Y-axis travel 20.47"
Z-axis travel 18.7"
Spindle speed 20000 rpm
Tool capacity 60
Main spindle motor 35 hp
Spindle taper HSK 63
High-pressure coolant system 580 psi
B-axis swivel −35 / +110 degrees
Rapid traverse X-axis 1654 IPM
Rapid traverse Y-axis 1654 IPM
Rapid traverse Z-axis 1654 IPM
Control system CELOS with Siemens 840D SLIMline
Machine weight 16500 lbs
Clamping area 24.8" x 19.68"
B-/C-axis speed 30 rpm
Maximum workpiece diameter 24.8"
Maximum workpiece height 23.6"
Maximum workpiece weight 661.4 lbs
Maximum tool length 11.81"
Maximum tool diameter 3.15" / 5.1"
Tool weight 17.6 lbs
NC swivel rotary table
Tool magazine with 60 HSK-A63 pockets
Swarf conveyor
Rotating clear-view window
Spray gun for swarf removal
Mechanical oil and emulsion mist separator
Infrared measuring probe PP60 optical
Laser tool measuring
3D Quickset
CSA specification
3D data model
Through-spindle coolant at 580 psi
