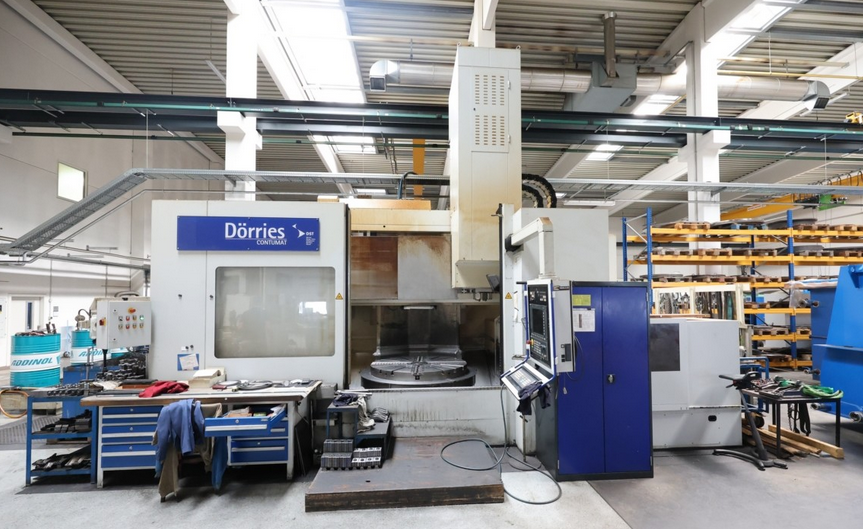

Dorries Scharmann VCE 1600/140 MC F Swing diameter: 1600 mm

Ref : 2760674-3-GO

Condition : Used

Manufacturer : Dorries Scharmann

Model : VCE 1600/140 MC F

Short Description : Swing diameter: 1600 mm

Year(s) : 2009

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

16–40-position pick-up magazine
Protective device
Various turning tool holders
Various SK50 tool holders and tools
Various clamping devices
Coolant device with filter
Chip conveyor
Documentation

Swing diameter: 1600 mm
Face diameter: 1400 mm
Turning height: 1245 mm
Max table load: 9000 kg
Table drive: 60 kW
Torque table: 13400 Nm
Table rpm: 450 1/min
Speeds C-axis: 0.004–5 1/min
Feed range: 18000 mm/min
X-axis travel: ±950 mm
W-axis stroke: 600 mm
Ram cross-section: 250 × 250 mm
Ram plunging diameter: 340 mm
Z-axis travel ram: 1100 mm
Distance milling spindle to table: 1245 mm
Tool holder: SK50
Drive power: 30 kW
Speed range: 2000 rpm
Torque: 1395 Nm
Dimensions: 8.5 × 5.3 × 5.7 m
Weight: 47.4 t
