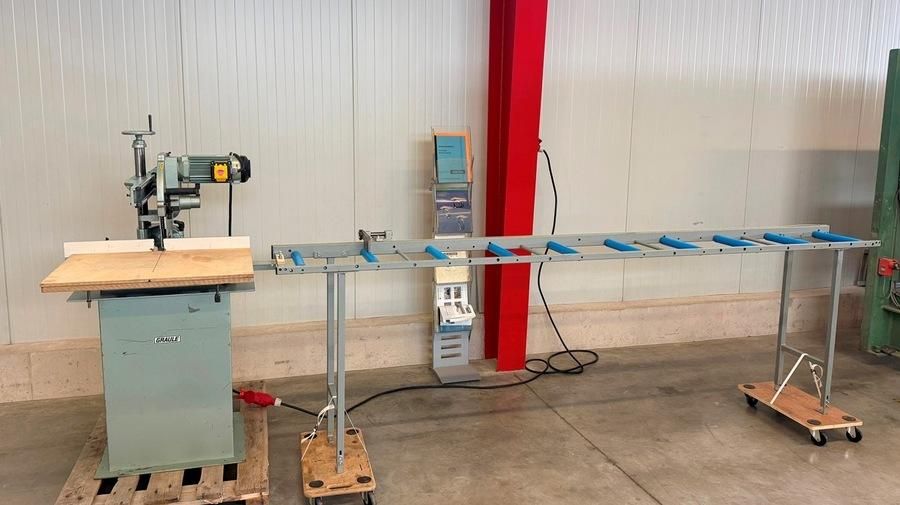

Graule ZS 135 N

Cross-cut and mitre saw Used
This machine type is used for cutting to length and for horizontal and vertical miter cuts, double mitre cuts are also possible
Precise ball bushing guide of the tool slide on hardened and ground steel shafts
Fast mitre adjustment up to 25° horizontally and up to 45° vertically
Adjustable fixed stops at 90° and 45°
Machine can be set to mitre in 2 planes
Adjustable aluminum stop plates
Sturdy cast iron construction
Lower saw blade guard can be connected to extraction system
3 kW three-phase 400 volt brake motor (special equipment)
Saw blade diameter 350 mm, Saw blade holder 30/40 mm, cutting height 135 mm, cutting length 430 mm, saw blade inclined at 45°: Cutting height 92 mm
Including saw blade for aluminum 350 mm diameter
Including machine stand for type ZS 135 N
Including roller conveyor RLK 3000 x 350 mm, with length stop with scale and material stop that can be folded back, roller diameter approx. 40 mm
Transport dimensions machine approx. 1300x700x1700 mm LWH, roller conveyor approx. 3000x500x800 mm LWH
Weight approx. 300 kg
