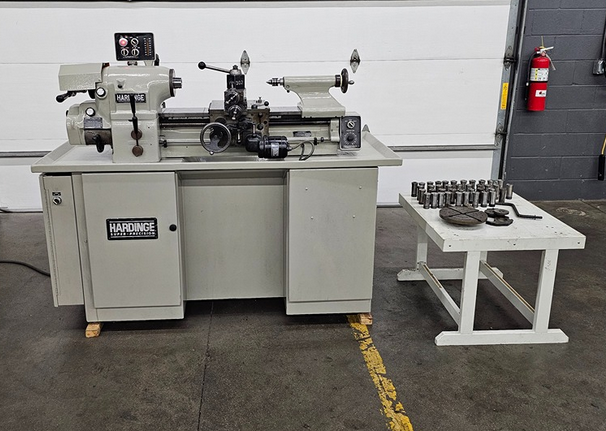

Hardinge Super Precision Tool Room Lathe 3,000 RPM HLV-H

Spindle type Hardinge super-precision preloaded ball bearing
Spindle nose Hardinge tapered nose
Spindle speed infinitely variable 125 – 3,000 RPM
Hole through spindle 1-1/4″

Spindle capacity with round 5C collets 1-1/6″
Spindle capacity with hexagon 5C collets 7/8″
Spindle capacity with square 5C collets 3/4″
Spindle capacity with step chucks 1-1/16″ to 6″
Spindle capacity with jaw chucks 5″
Spindle capacity with expanding collets 3″

Swing over bed 11″
Swing over carriage 9″
Swing over cross slide 6″
Distance between centers 18″
Compound slide travel 3″

Carriage power feed range 5/16″ to 7″ IPM
Cross slide power feed range 3/16″ to 4″ IPM
Tailstock spindle diameter 1-3/8″
Tailstock spindle travel 3-3/4″
Tailstock spindle taper #2 MT
Threading range 11″ to 108″ TPI
Approximate dimensions LxWxH 65″ x 28″ x 58″
Approximate weight 1,700 lbs

Equipped with
change gears
many 5C collets
Hardinge lever type 5C collet closer
Hardinge full bearing tailstock
Gusher pump coolant system
