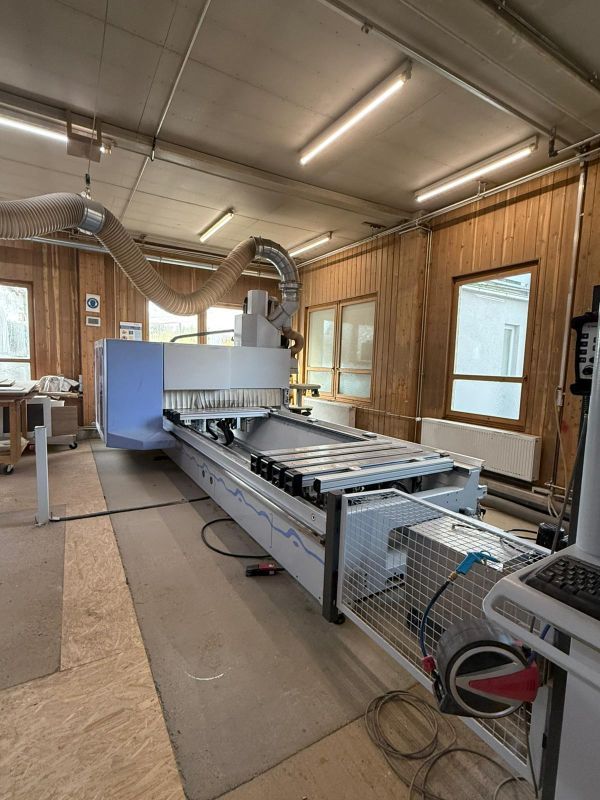

Homag BMG311 VENTURE316L

CNC machining center with gluing unit
Technical data:
- Linear guide system with dust protection
- Rack and pinion drive for X and Y axes
- Ball screw for Z axis

Travel speed:
- Vector speed: 70 m/min
- X axis: 35 m/min
- Y axis: 60 m/min
- Z axis: 25 m/min

Workpiece parameters:
Max. workpiece lengths
All units
- Single: 4200 mm
- Pendulum: 500 - 2440 mm

Workpiece diameter 25 mm
- Single: 4375 mm
- Pendulum: 500 - 2616 mm

Max. workpiece width
All units
- Front stop: 950 mm
- Rear stop: 1400 mm

Milling Workpiece diameter 25 mm
- Front stop: 1050 mm
- Rear stop: 1550 mm

Workpiece thickness
- Max. 270 mm including clamping device (max. tool dimensions depending on workpiece thickness and extraction hood (top/bottom)
- Up to max. 60 mm with standard clamp without restriction for units and extraction

Clamping table:
- Console table K
- Consoles incl. front stop: 8 pcs.
- Rear stop (fixed): 5 pcs.
- Lift rails: 6 pcs.
- Console length 1340 mm
- Stop bolts selectable in groups, lift from console surface: 140 mm

Side stops:
- Left 2 pcs.
- Right (mirror position): 2 pcs.

Vacuum clamps:
- 16 pcs. 160x115x100mm
- 8 pcs. 125x75x100 mm

Turntable vacuum pump:
- 2 x 90/108 m3/h (50/60 Hz)

powerControl PC85
POWERTOUCH control system
Easyedge gluing package
Easyedge manual end cap gluing device
