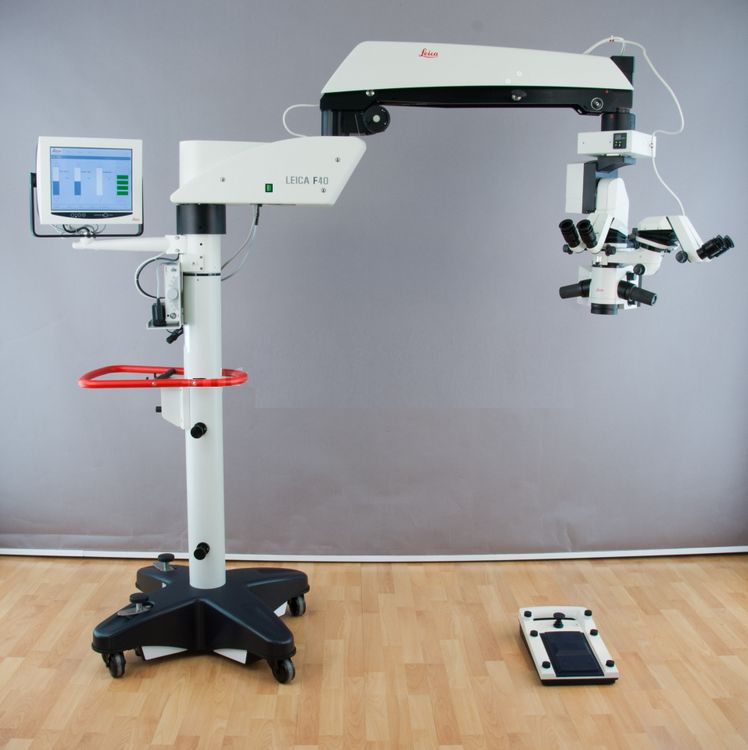

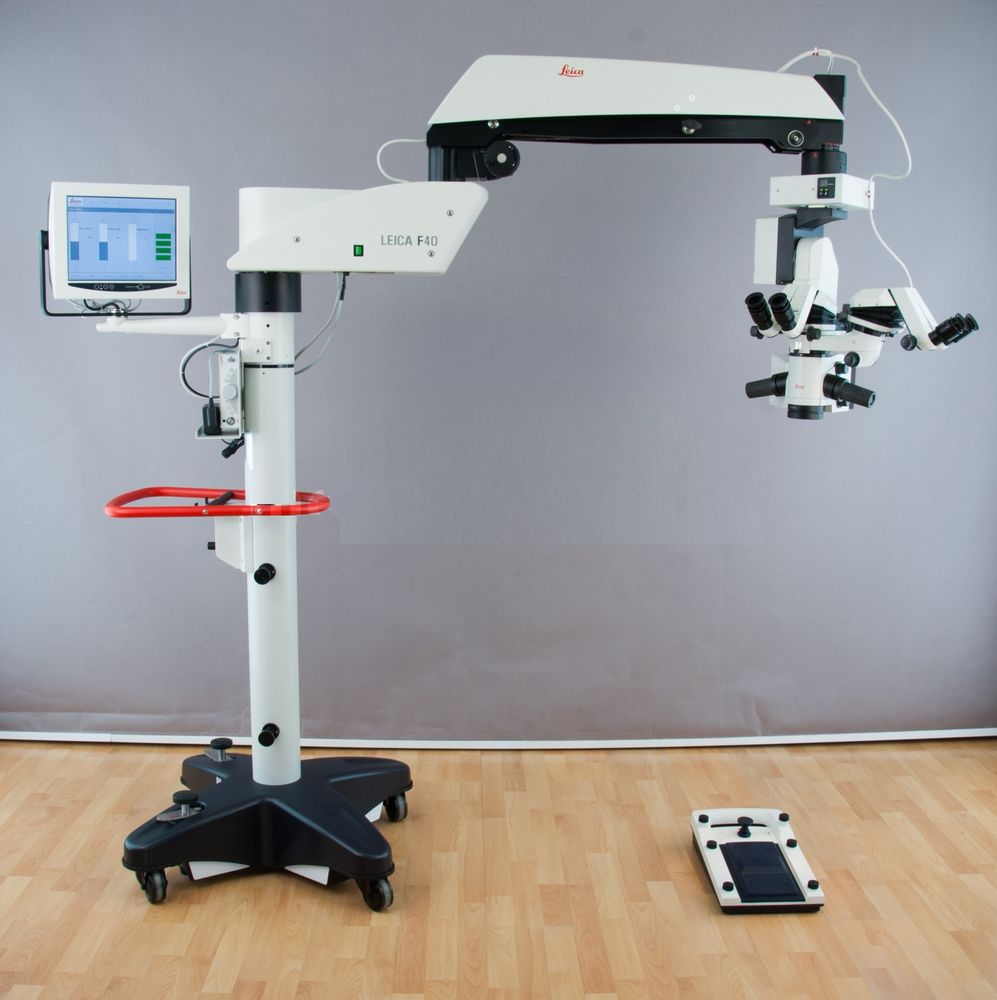

Leica M844 F40 Ophthalmic Surgical Microscope with HD Vision System

Used, refurbished Leica M844 Swiss ophthalmic surgical microscope
on an F40 mobile stand. Year of manufacture: 2014.
The Leica M844 is a specialized ophthalmic microscope, adapted for
procedures on both the anterior and posterior segments of the eye.
The microscope is fully functional, in very good technical
and visual condition.

All the devices we sell have been technically verified and
tested several times. Any parts that require replacement have
been replaced. To ensure this, our devices are tested again before
each shipment to a customer.

EQUIPMENT
Leica Ottoflex - Red Reflex
F40 Mobile Tripod
Leica Ultra Low Doctor View
Leica Ultra Low Assist Preview
Leica HD C100 vision path:
Capturing images (photos)
Captured images can be stored on a USB memory stick
Playing back a captured image
Operating the device using the panel on the device housing
Touchscreen control unit
Wireless foot controller

TECHNICAL DESCRIPTION
Microscope on a mobile stand F40, electrically controlled:
Smooth movement of the microscope head and arms
(electromagnetic clutches)
Smooth adjustment of magnification (zoom) and focus (focus)
Smooth adjustment of focusing and zoom speed
Head tilt: +15°/-50°
Head movement along the XY axis

Parameters:
Total microscope magnification: from 3.0x to 18.2x
Glasses magnification:
doctor: 8.33x
assistant: 10x
Leica Ultra Low doctor's binocular with adjustable inclination angle
from 10 to 50 degrees
Leica Ultra Low assistant binocular with adjustable inclination angle
from 10 to 50 degrees
Lens focal length: Leica OptiChrome™, WD=200 mm
XY module reset function: return to the home position
Focus reset function: return to the starting position
Leica HD C100 vision path:
Resolution: 1080p, 950 lines
Video OUT: 1x HDMI, 1x HD-SDI (3G), 1x Video (BNC), 1x RS-232C
Other: 1x USB, 1x LAN
Adjusting the light intensity
A module with a spare halogen bulb built into the microscope head
Main light source: Halogen 50W/12V
Spare light source: Halogen 50W/12V
Power supply: 90-265V AC/ 50/60HZ / 400VA

Dimensions:
Microscope height:
min: 195 cm
max: 233 cm
Lens distance from ground:
min: 84 cm
max: 153 cm
Lens to column distance:
max: 150 cm
Base: 74 cm x 70 cm
Weight: about 350 kg
