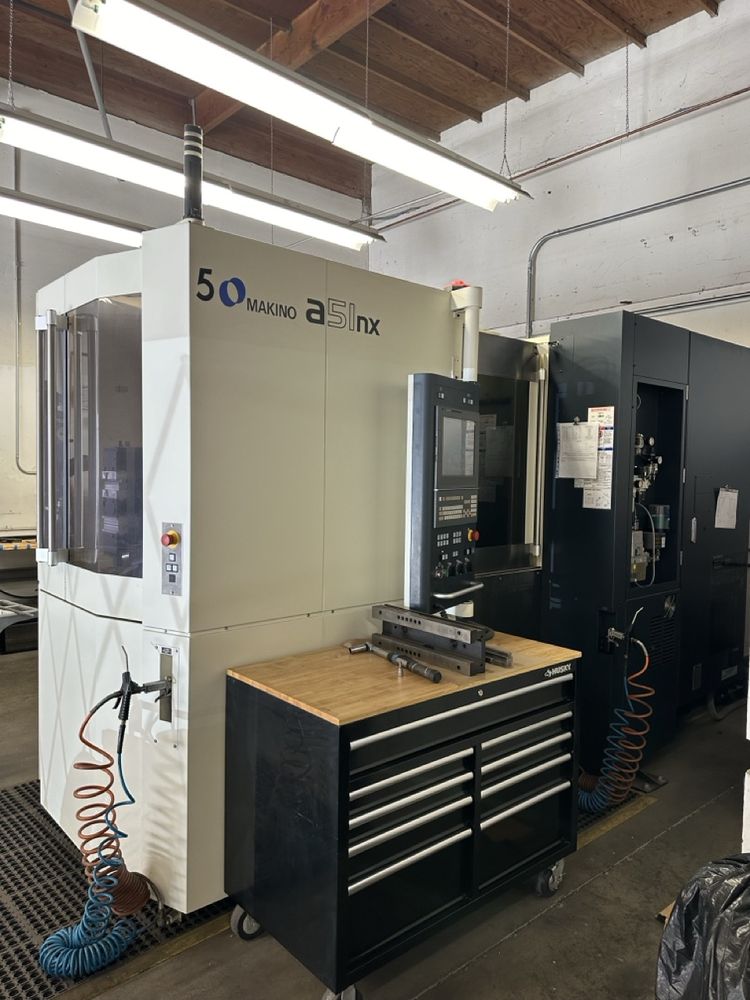

Makino A51NX 4 Axis

X axis travel: 22.05"
Y axis travel: 25.19"
Z axis travel: 25.19"
Rotary axis: Full 4th axis
Control: Makino Professional 6
Tool setter: Renishaw OMP400 & NC4S
Coolant through spindle: 320 PSI
Spindle speed: 14,000 RPM
Spindle taper: CAT 40
Spindle motor: 50 HP (30 HP continuous)
ATC: 60 tools
Pallet size: 15.75" x 15.75"
Pallet weight capacity: 880 lbs
DD motor rotary table
Pallet changer
Random pallet selection
Pallet clamp confirmation function
Pallet changer safety cover
Chip conveyor: Mayfran ConSep 2000 LUCC
Workpiece wash gun
Air dryer
Inverse time function
Increase program storage: 2MB
Workpiece setting error compensation
High speed smooth TCP
Tilted working plane command
APC door interlock
Terrace washing coolant
Automatic splash guard
Vision BTS
I/O interface for measurement
Manual pulse generator
Helical interpolation
High speed skip
Coordinate system rotation
Custom macro common variables
Adaptive control function
Rigid tap
