MAN Roland Lithoman III 5
EUROPE (Western and Northern)
Age: c. 1998 - 1999
Cut off: 2 x 445 mm
Cylinder Circ: 890 mm
Web width: 1260 mm
Max speed: 60,000 CPH
Machine is configured Left to Right
Equipment Comprising of:
(1) Stork Contiweb SH50-BP-1320 Reelstand
(1) Web-up System
(1) MAN Infeed
• Integrated Grafotec Web Severer
• E&L Web Guide
(1) Lithoman Flying Imprinter (for 1/0 and 2/0 printing)

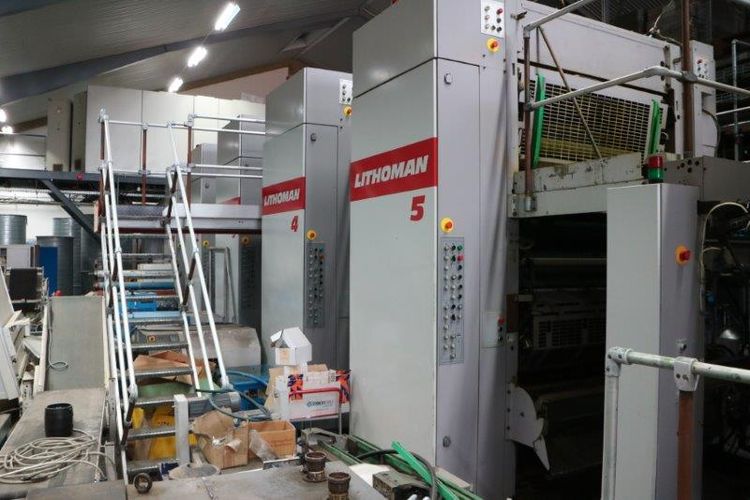

(4) MAN Lithoman III Printing Units
• Semi-automatic plate loading
• Hydromix dampening
• BVS automatic ink level controls
• Oxy-Dry blanket wash system
(1) Web Catcher

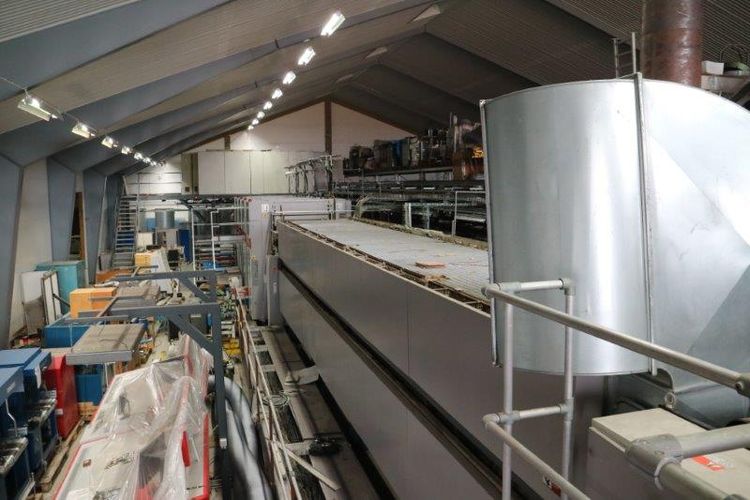

(1) 13.5M Contiweb Ecotherm EC130-126 R-72 AG
• Integrated afterburner
(1) MAN Chill Roll Stand
• 6 Chill rolls
• Integrated E& L web guide
(1) Chill Roll Cleaning Device
• Located after the 1st chill roll
(1) Folder superstructure
• (3) sets of turning bars (parallel)
• E&L web guide (full width)
• (3) E&L web guides (ribbon)
• Weko silicone applicator
• Length perforation
• Ribbon stitcher, positioned below the first former
• (2) Former boards
(1) MAN 2:5:5 Folder
• Cross perforation
• Cylinder stitcher
• 1st cross fold
(1) Planatol Combijet 7 Cold Glue and Spine Softening

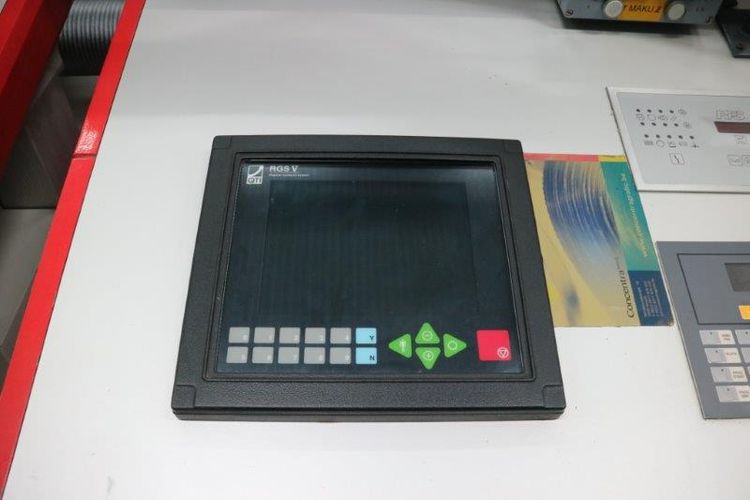

(1) QuadTech RGS V Colour Register System
(1) QuadTech PPC 3000X Cut-oft Register System

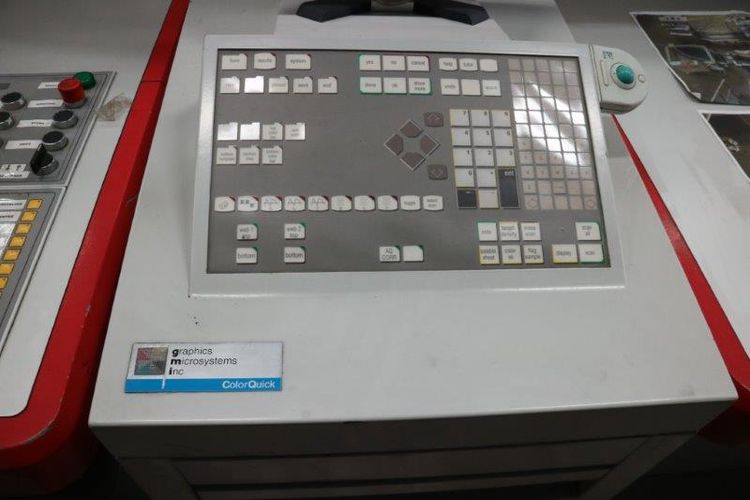

(1) GMI Closed Loop Colour Control System

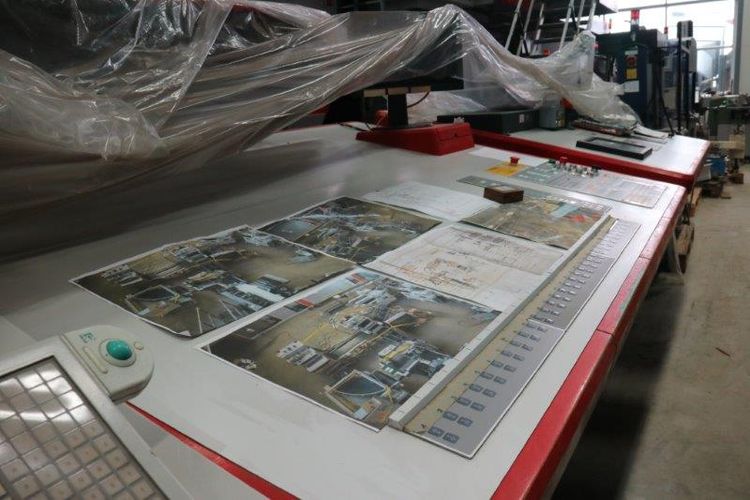

(1) Main Control Desk
(2) Colour Contrrol Desks
(1) MAN PECOM 1 & 2 Control System
(1) MAN Plate Bender
