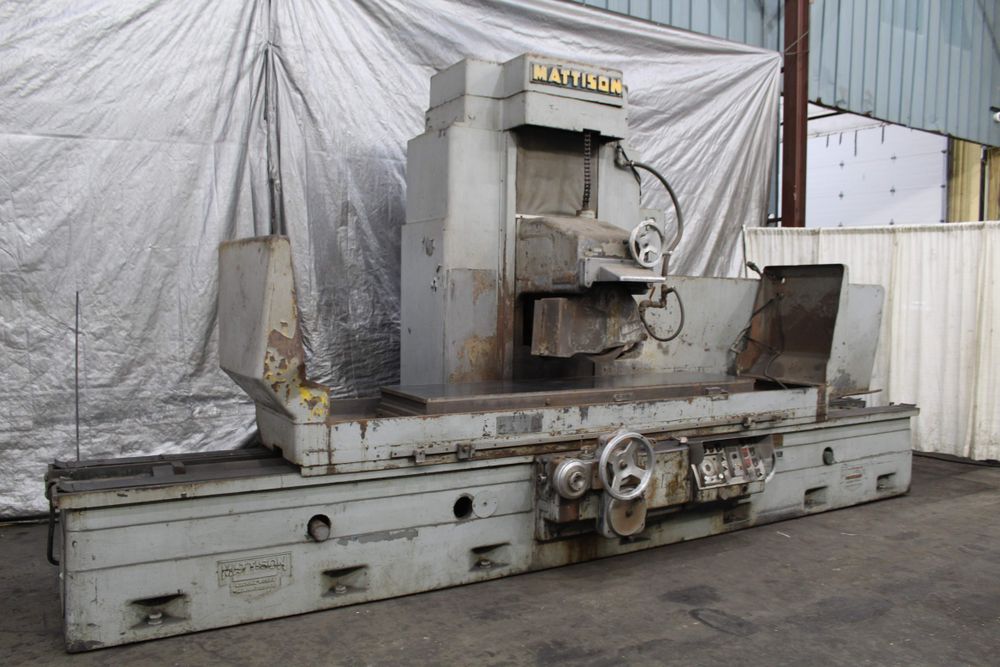

Mattison 24 X 96

Mattison 24 X 96

GRINDING CAPACITY ......................... 24" X 96"
MAXIMUM WORK HEIGHT UNDER WHEEL ........... 30"
TABLE AREA (T-SLOTTED) .................... 24" X 102"
ELECTRO-MAGNETIC CHUCK , FINE LINE ........ 24" X 101" X 5-1/4"
GRINDING WHEEL SIZE ....................... 20" X 6" X 5"
SPINDLE SPEED ............................. 1160 RPM
TABLE SPEEDS (VARIABLE) ................... 30 TO 100 FPM
LONGITUDINAL TABLE TRAVEL ................. 102"
INCREMENTAL DOWNFEED ...................... YES
AUTOMATIC CROSSFEED ....................... 24"
POWER ELEVATION ........................... 25"
JUMP FEED LONGITUDINAL & CROSS ............ YES
OVER THE WHEEL HYDRAULIC DRESSER .......... YES
ELECTRO-MAGNETIC CHUCK CONTROLS ........... NEUTROFIER II
COOLANT WITH SLUG CONVEYOR ................ YES
AUTOMATIC LUBRICATION ..................... YES
HYDRAULIC MOTOR ........................... 15 HORSEPOWER
SPINDLE MOTOR ............................. 30 HORSEPOWER
