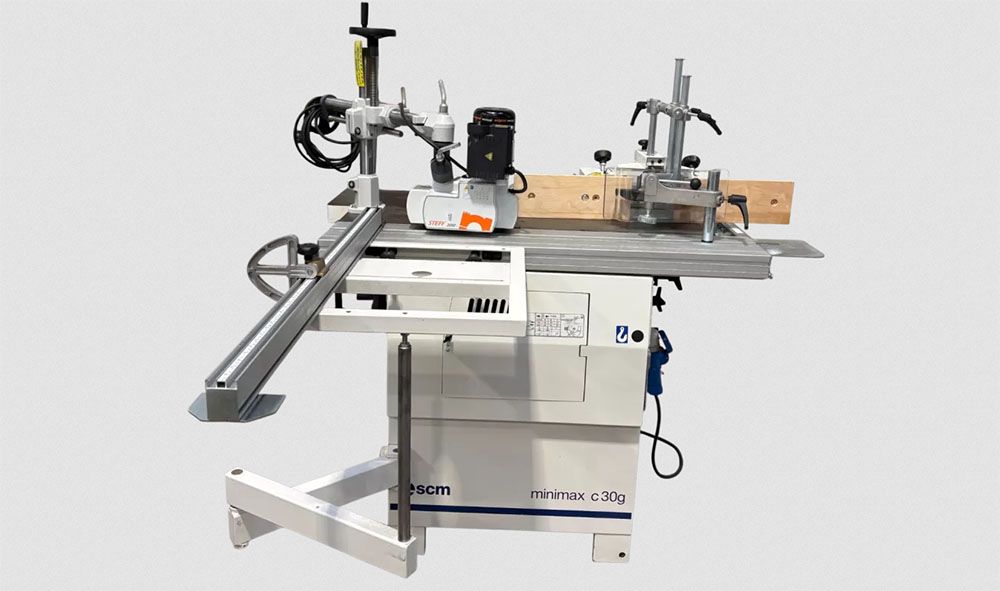

SCM C30G

4-OPERATION SINGLE-PHASE COMBINATION MACHINE WITH DRIVE
CAPACITIES & COMPOSITION:
1) Saw:
- Cutting length (ripping) 1200 mm
- Maximum cutting width with parallel guide: 500 mm
- Blade rotation speed 3900 rpm
- Tiltable blades -/+45°
- Maximum cutting height at 90°: 75mm & at 45°: 60mm
- Saw blade Ø 250mm Bore Ø 30mm
- Sliding aluminum trolley 1150 x 180 mm flush with the blade, with handle
Graduated and tiltable transverse ruler with 1 reversible stop and 1 eccentric clamp

2) Jointer:
- Usable working width 300 mm
- Maximum feed size 3 mm
- Cast iron worktop, length 580 + 580 mm
Noise-reducing lips

3) Planer:
- Planing table (L x W) 430 x 300 mm with manual positioning
- Planing thickness: 10 to 200 mm
- Minimum planing length 120 mm
- Drive pressure rollers
helical at the inlet and smooth at the outlet
- Training speed 6 m/min
- Shaft Ø60 mm, 3 HSS STD knives 25x3x300 mm
- Rotation speed 5500 rpm

4) Spinning top:
- Spindle moulder shaft Ø30 x h.120 mm usable
- Spindle rotation speeds: 6000/8500 rpm
- Table with complete set of table washers (plates)
Tool passage in the table Ø145 x h.35 mm
- Spinning top cover with wooden sides and protector
Acceptable tool max Ø150 mm
- Electrical predisposition (servo control) for a drive unit
- Installed trainer
Model: MAGGI STEFF 2032 Power: 0.12 kW 2 speeds

OTHER FEATURES:
- 220V power supply. Single-phase 50Hz
- 1.8 kW planer/thicknesser motor
- 1.8 kW saw motor
- 1.8 kW spindle motor
- Suction Ø120+Ø60 (saw) /Ø120 (spindle moulder) / Ø120mm (jointer/planer )
Recommended air flow rate 1100 m3/h
- CE marking, lockable disconnect switch, front/rear emergency stop buttons

Transport dimensions (LxWxH): 130 x 90 x 130 cm
Weight 270 kg
Machine supplied with pre-mounted sharpening irons, user manual, diagrams and spare parts list
