Stanko Plano Milling-Boring Machine

Ref : 732574-3-MT
Condition : Used
Manufacturer : Stanko
Model : Plano Milling-Boring Machine
Spindle Speed : -
Spindle Size : -
Year(s) : 2004
Quantity : 1
Location : Seller or machines location:
EUROPE (Central and Eastern)
Last check : 29 May. 2017

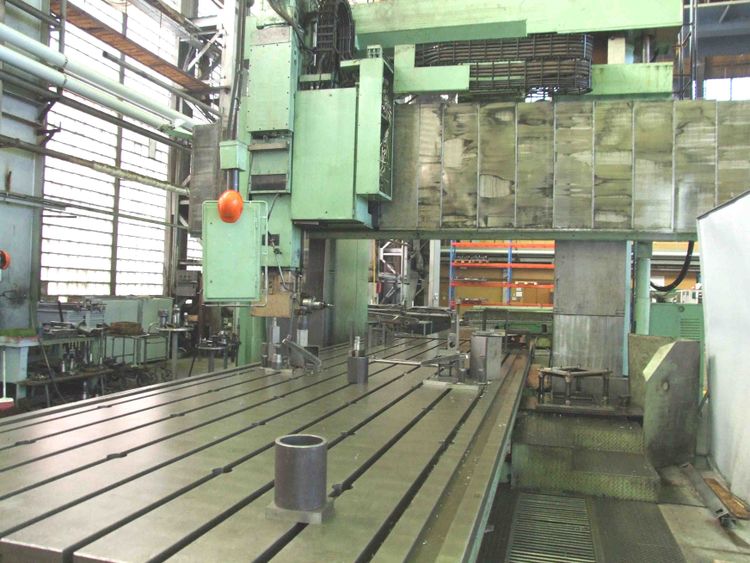

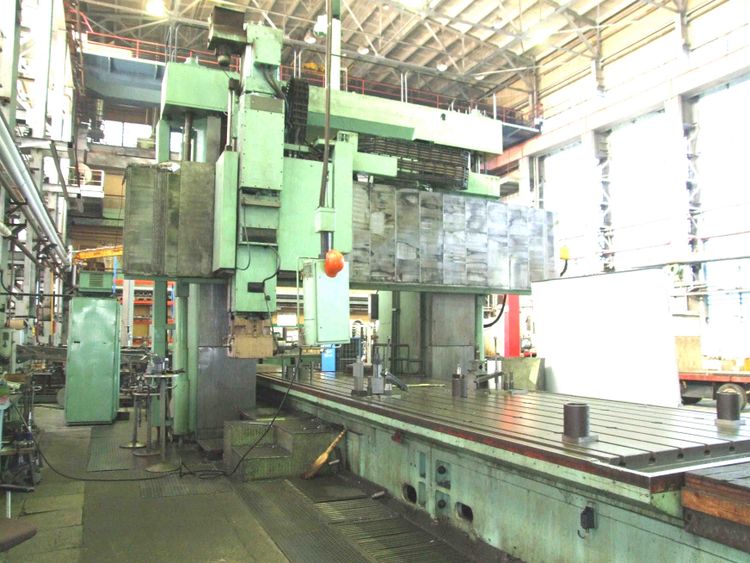

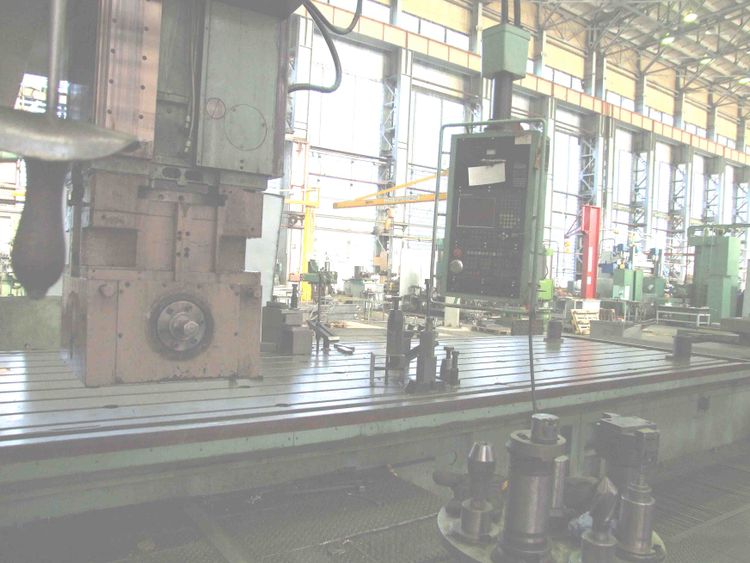

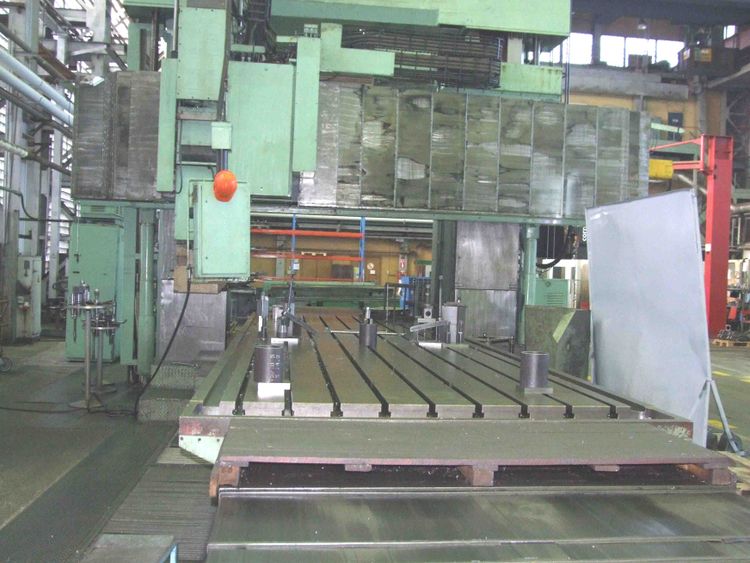

Plano Milling-Boring Machine Stanko 66K25F4(6625) CNC

Machines are designed for comprehensive treatment of carcasses including details with curvilinear surfaces from ferrous and non-ferrous metals and some kinds of plastic by milling, drilling and boring. Machine equipment - longitudinal movable table with hydro-static guideways of closed type and stationary portal - provides high rigidity of machine which allows carrying out draft and finishing treatment and preserving machine precision in long-term operation.

Specifications:
Table dimensions, mm 2500x8000
Distane between column, mm 3100

Max.dimensions of detail ,mm 8000x3000x2000

Max.working height ,mm 2100
Sliding bar run (Z), mm 1200
Spindle stock run (Y), mm 4000
Table run (X), mm L 8000
Cross bar run (W), mm 1710
Spindle cone according to the State Standard 24644-81 60
Spindle rotation frequency, min-1 5...630
Maximum load of table, kg 40000
Spindle stock motor capacity, kW 40...55
Machine weight, kg 126000
