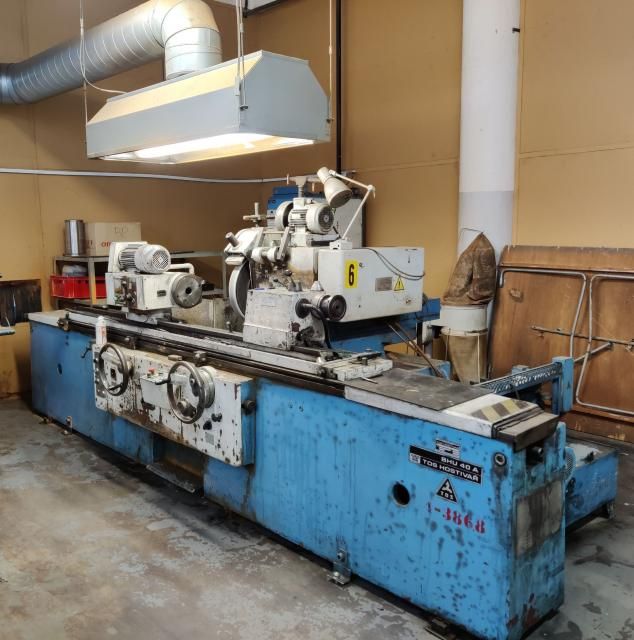

TOS Hostivař BHU 40A/1500
EUROPE (Central and Eastern)
TOS Hostivař BHU 40A/1500
Revolving diameter: 400 mm Distance between the tips: 1500 mm Width of
the grinding wheel: 60 mm Cone in the drive spindle: Morse 5 Cone in the tip
socket of the tailstock: Morse 5 The largest weight of the workpiece between
the tips: 300 kg The largest weight of the workpiece clamped in flight: 60 kg
Speed of the grinding machine spindle: 1720 , 1980 rpm Lateral movement of
the grinding headstock: 415 mm Quick adjustment of the grinding headstock:
60 mm Electric motor of the grinding headstock: 9.5 kW Total input power of
the electric motors: 16 kVA Dimensions of the machine L x W: 6220 x 2320 mm
Weight of the machine: 5650 kg Internal grinding: Yes Upon prior agreement,
an option tours in progress.
