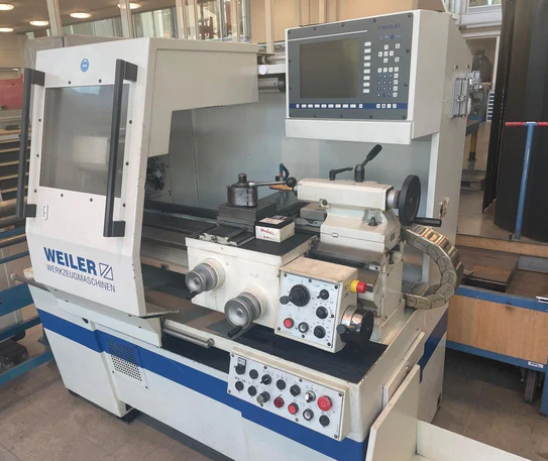

Weiler CNC CONTROL 4,500 t/min Stepless E 30 / D1 2 Axis
Ref :
2761622-3-MT
Condition :
Used
Manufacturer :
Weiler
Controller :
CNC CONTROL
Spindle Speed :
4,500 t/min Stepless
Model :
E 30 / D1
Nb Of Axis :
2 Axis
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Centre Height: 165 mm
Distance Between Centres: 770 mm
Swing Over Cross-Slide: 160 mm
Swing Over Bed: 330 mm
Spindle Hole: 42 mm
Spindle Speeds: 1–4,500 t/min Stepless
Spindle Power: 9 / 11 kW
Tailstock Morse Taper: 3 CM
Tailstock Spindle Stroke: 110 mm
Tailstock Spindle Diameter: 50 mm
Rapid Traverse X: 5 m/min
Rapid Traverse Z: 10 m/min
Voltage: 3×400 V 50 Hz
Total Power Required: 10 kVA
Machine Weight: 1,300 kg
Overall Dimensions: 1,800 × 1,200 × 1,700 mm
3-Jaw Chuck Ø160 mm
Set of Hard Jaws
Lamp
Tailstock
Set of Centres
Drill Chuck
MULTIFIX Quick-Change Tool
Set of Steel Holders
Set of Toolholders
