Zangheri B29

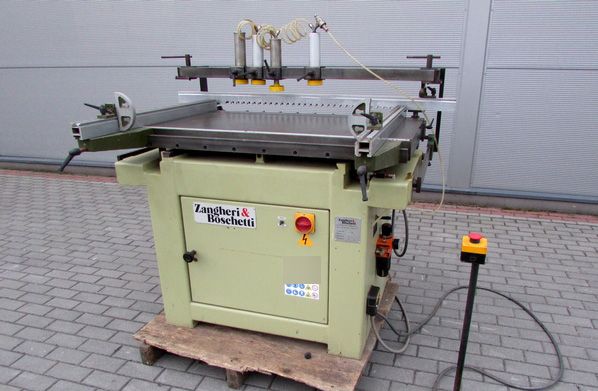

ZANGHERI & BOSCHETTI B29 multi-spindle drilling machine
number of spindles 29
32 mm spindle spacing
engine power 3 kW
table top dimensions 880 x 1220 mm
adjustment of the angle of the aggregate
drilling depth adjustment
aggregate stroke 120 mm
two transverse rulers with a 1000 mm ratchet
parallel ruler with a 1500 mm ratchet
notches for drilling cans
pneumatic head adjustment
four pneumatic clamps
table top height from the base 950 mm
dimensions of the machine (length / width / height) 150/120/150 cm
weight 700 kg
