American Heavy Duty Engine Lathe 750 rpm PACEMAKER STYLE H6

Ref : 2056763-3-AW
Condition : Used
Manufacturer : American
Type : Heavy Duty Engine Lathe
Spindle Speed : 750 rpm
Model : PACEMAKER STYLE H6
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 21 Aug. 2019

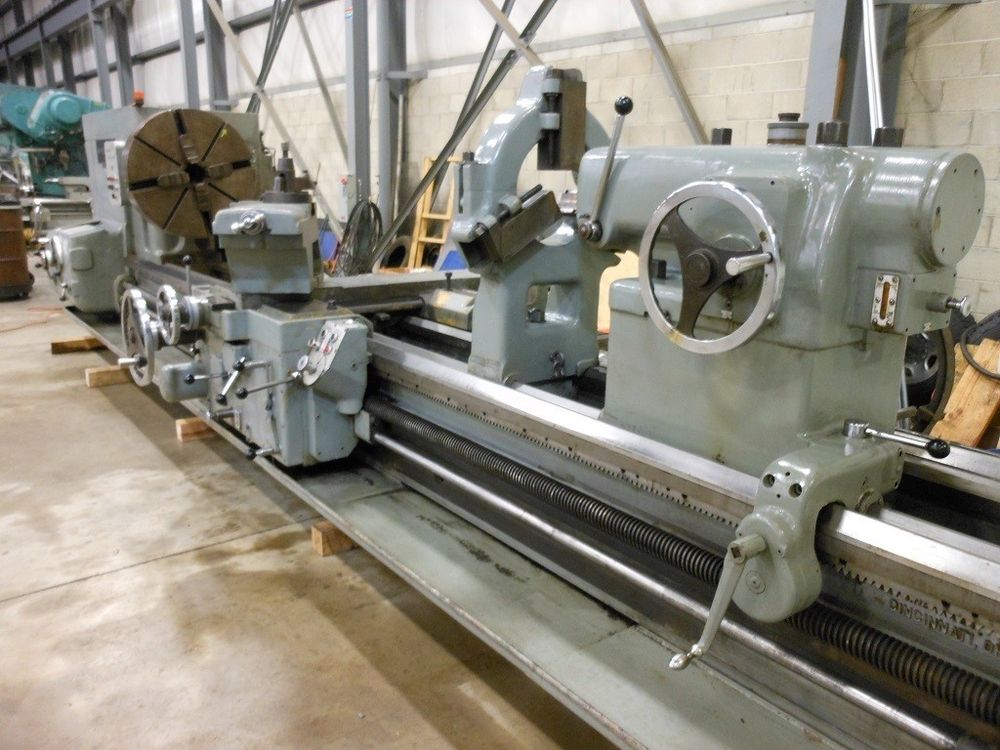

46” X 168” AMERICAN PACEMAKER STYLE H6 1971

HEAVY DUTY ENGINE LATHE

46” Swing over Bed

42 ½” Swing over Carriage Wings

32 ½” Swing Over Cross Slide

168” Centers

7.5 - 750 RPM Spindle Speeds

49 ½” Bed Length

Radial Load Capacity, Front Bearing at 100 RPM: 53,300 Lbs.

Thrust Load Capacity at 100 RPM: 47,700 Lbs.

Radial Load Capacity, Center Bearing at 100 RPM: 29,300 Lbs.

2 7/8” Diameter of Hole in Spindle to Clear Bar

#6 Taper of Center

Quick Change Gear Box: 60 Threads Can Be Cut, ½ to 30 Range of Threads Can Be Cut Per Inch & 60 Feeds Can Be Cut.

.004 to .240 Range of Feeds In Thousandths Per Revolution

2 ½” Diameter of Leadscrew

½ Pitch Leadscrew

Weight: 30,000 Lbs.

Dimensions: 394” LR, 96” F-B, 72” H

Complete With 440 Volts - 3 PH - 60 CYC - 40 HP Electrics, 32” 4-Jaw Chuck, 12” Steady Rest, Taper Attachment, Tool Post, Tailstock & Threading Chasing Dial.
