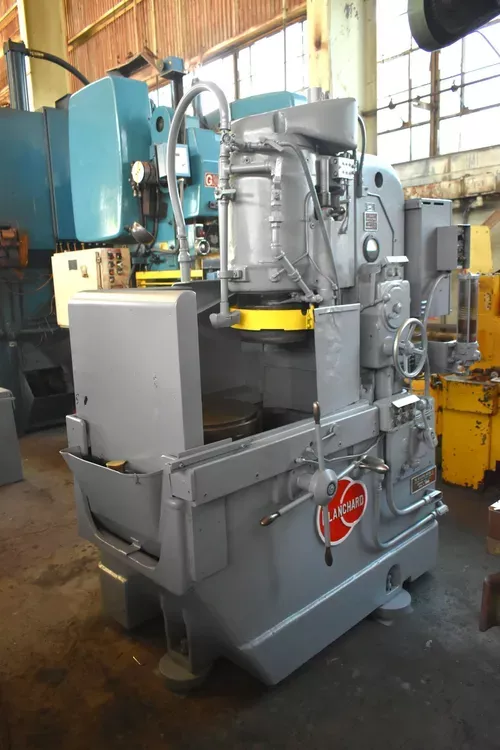

Blanchard 11-16

Vertical-spindle machine design
16" diameter magnetic chuck with neutofier
Cylindrical grinding wheel hub with load meter
Coolant system (built-in)

Technical Data
Chuck size 16"
Swing 20"
Height under grinding wheel 8"
Grinding wheel diameter 11"
Grinding wheel width 5"
Grinding wheel hole diameter 9"
Grinding wheel speed 1200 RPM
Chuck speeds 15–64 RPM
Power down feeds .003–.070 IPM
Spindle motor 15 HP
Spindle speed 1165 RPM
Electrical system 230-460/3/60
Dimensions 5'3" x 3'6"
Overall height 6'9"
Weight 5475 lbs
