Blanchard 36-60

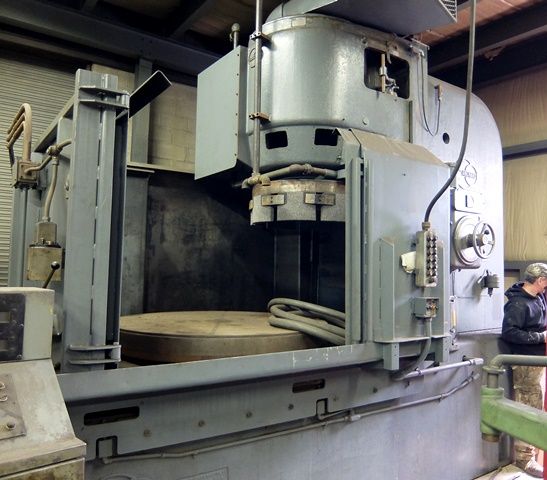

Blanchard 60" Vertical Spindle Rotary Surface Grinder
Model 36-60
New 1957, Reconditioned 2016.

Blanchard 60in Vertical Spindle Rotary Surface Grinder

Specifications:
Magnetic chuck size.......................................................... 60" diam.
Wheel chuck size .............................................................. 36" diam.
Max. swing inside guards............................................................ 78"
Max. height under new wheel..................................................... 29"
Chuck life (approx.)................................................................... 5/8"
Motor....................................................................... 60hp/3/60/440v
Weight (approx.)............................................................... 60,000 lb.


Equipped with:
Segmented wheel chuck (8 segments)
Recently scraped and slip sheeted(Turcite) table bearing surface
Recently replaced guards
Recently replaced electrical wiring
Concrete filled base with channels for coolant wash-through
