Blohm Planomat 616 HP

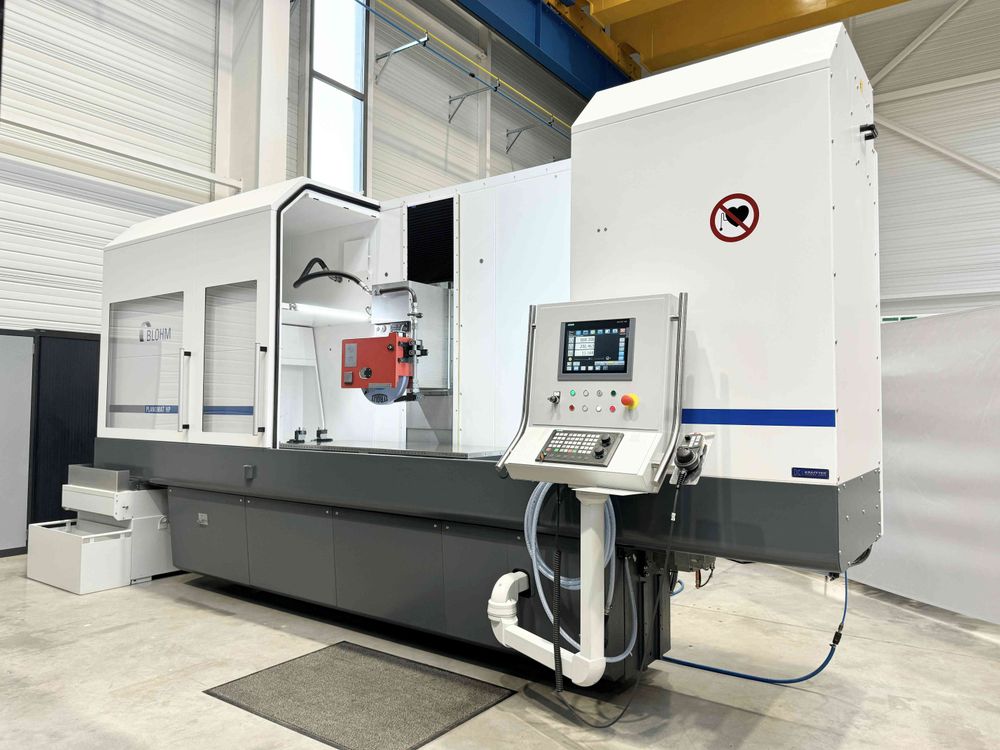

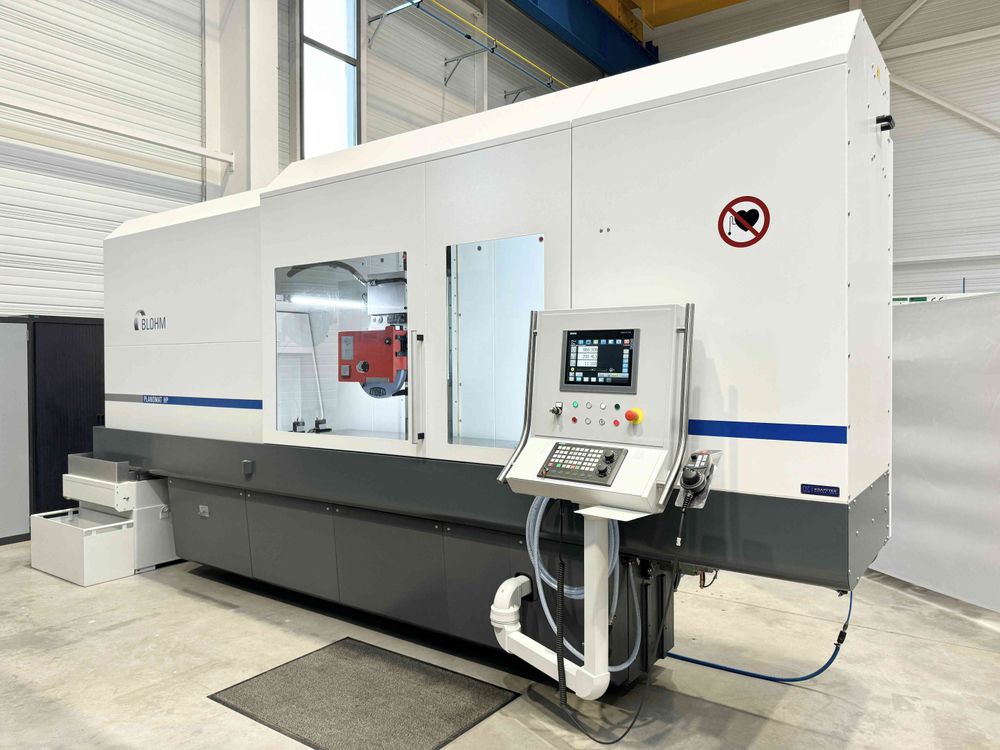

CNC surface grinder BLOHM Planomat 616 HP



TECHNICAL CHARACTERISTICS :

Year of manufacturing : 2015

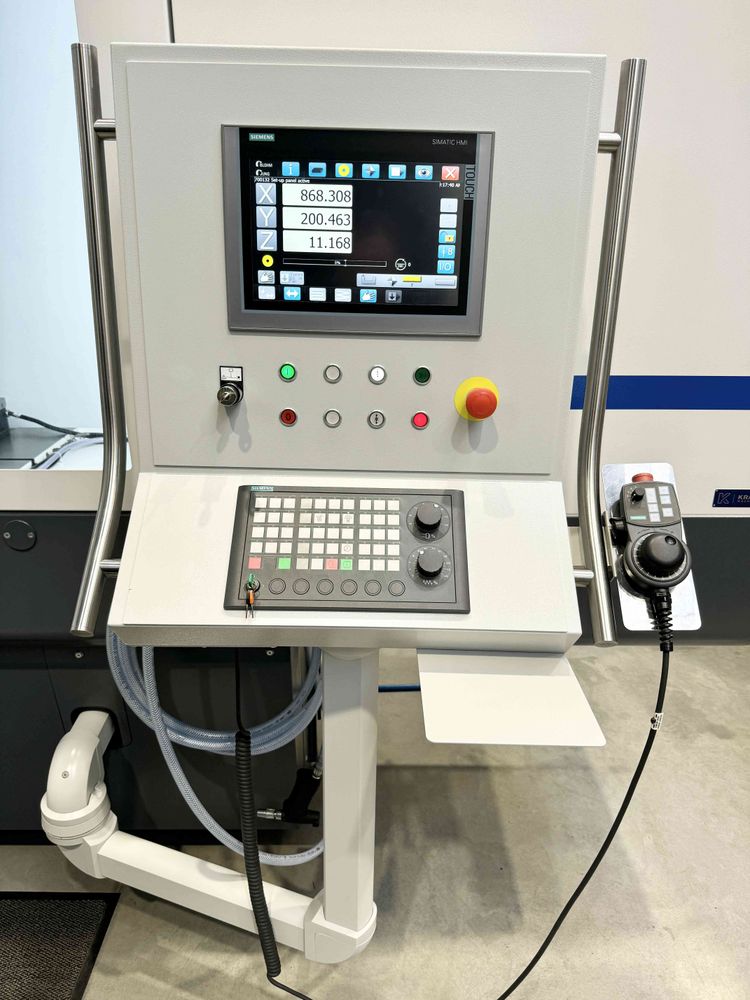

CNC control : SIEMENS 840D SL
Maximum grinding lenght x width : 1600 x 600 [mm]
Stroke X axis (table movement) : 1700 [mm]
Min. Stroke speed X axis : 30 [mm/min]
Max. Stroke speed X axis : 30000 [mm/min]
Resolution X axis : 0.001 [mm]
Stroke Y axis (vertical movement) : 800 [mm]
Min. Stroke speed Y axis : 4 [mm/min]
Max. Stroke speed Y axis : 6000 [mm/min]
Resolution Y axis : 0.001 [mm]
Course axe Z (transverse movement) : 560 [mm]
Min. Stroke speed Z axis : 4 [mm/min]
Max. Stroke speed Z axis : 6000 [mm/min]
Resolution Z axis : 0.001 [mm]
Min. distance spindle nose / table : 150 [mm]
Max. distance spindle nose / table : 950 [mm]

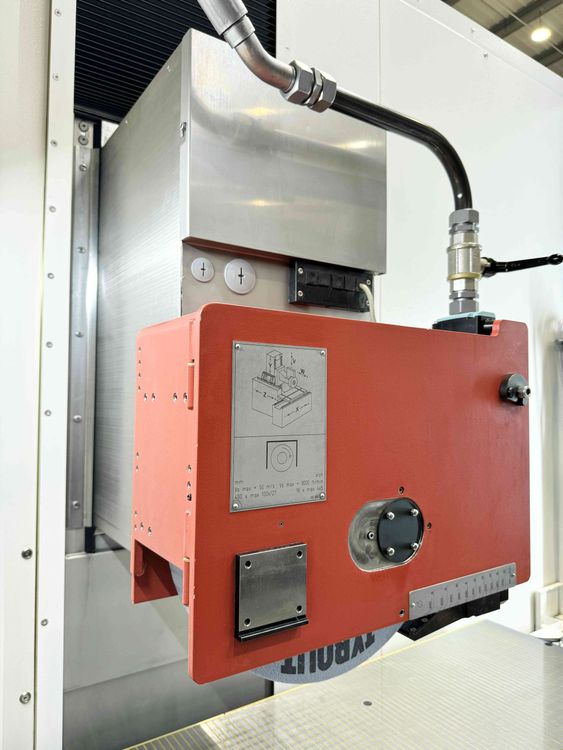

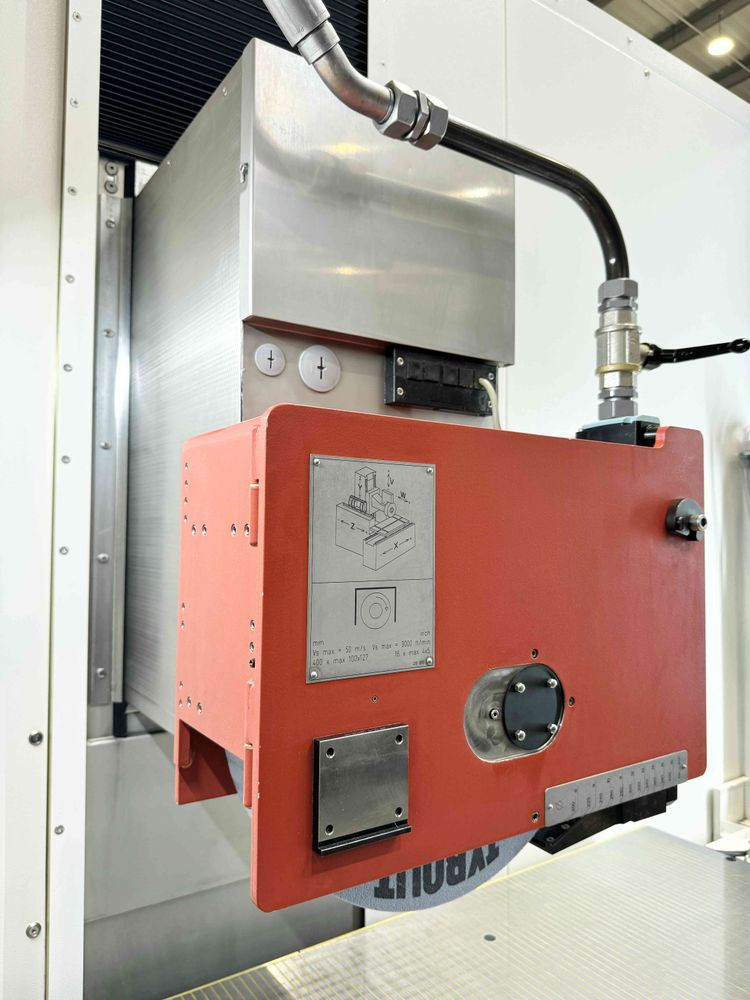

Grinding spindle motor power : 15 [kW]

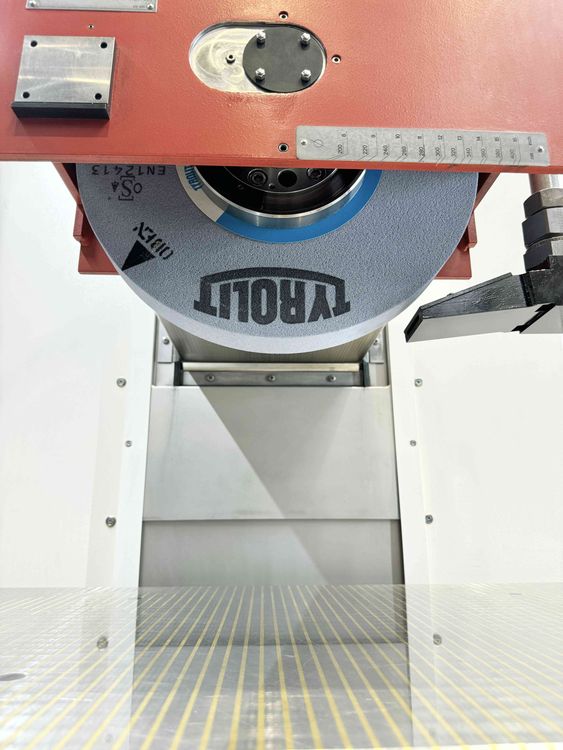

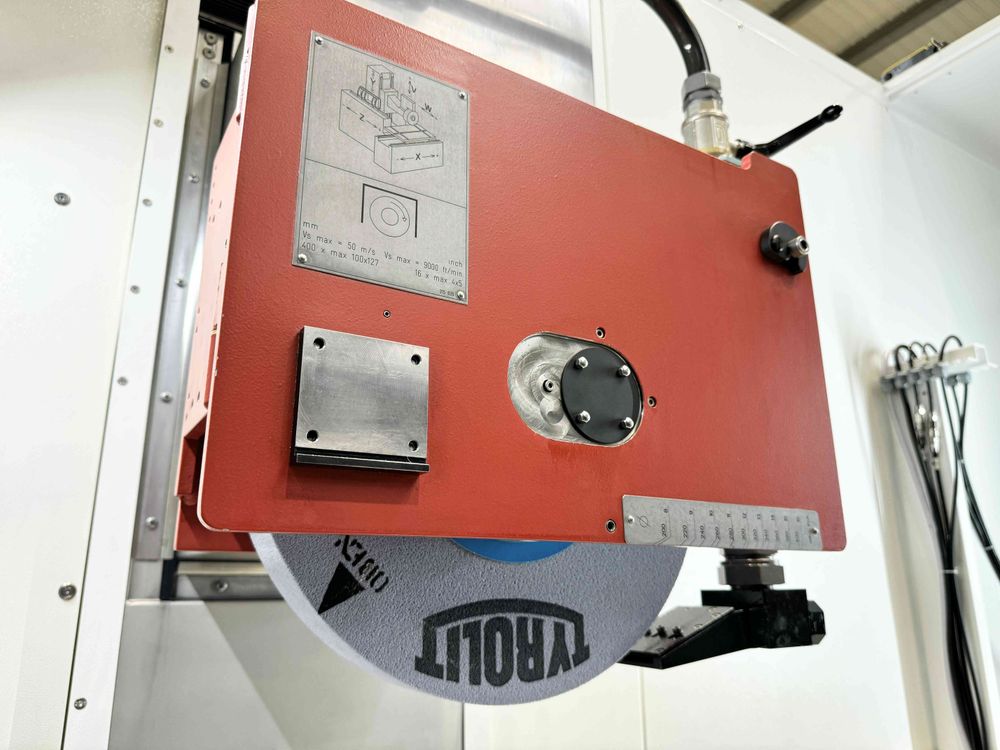

Max. diameter grinding wheel : 400 [mm]
Max. grinding wheel width : 30 [mm]
Grinding wheel bore : 127 [mm]
Dimensions of magnetic plate : 1600 x 600 [mm]
Machine dimensions : 5450 x 3560 x 2800 [mm]
Supply voltage : 400 [V]
Weight : 8000 [Kg]


EQUIPMENT INCLUDED:

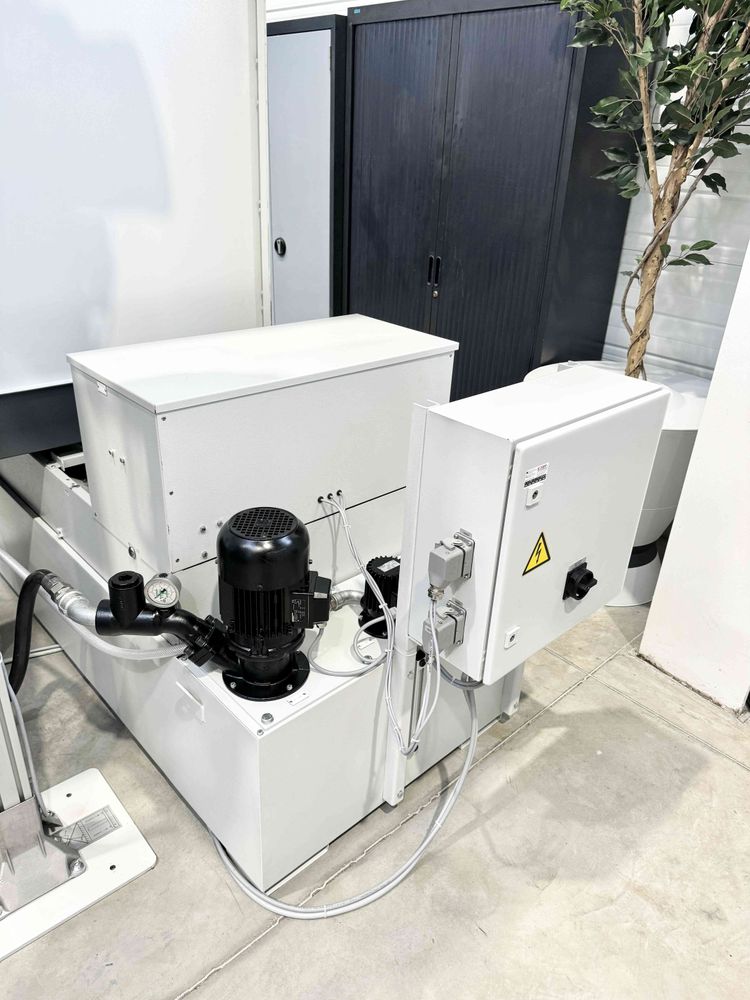

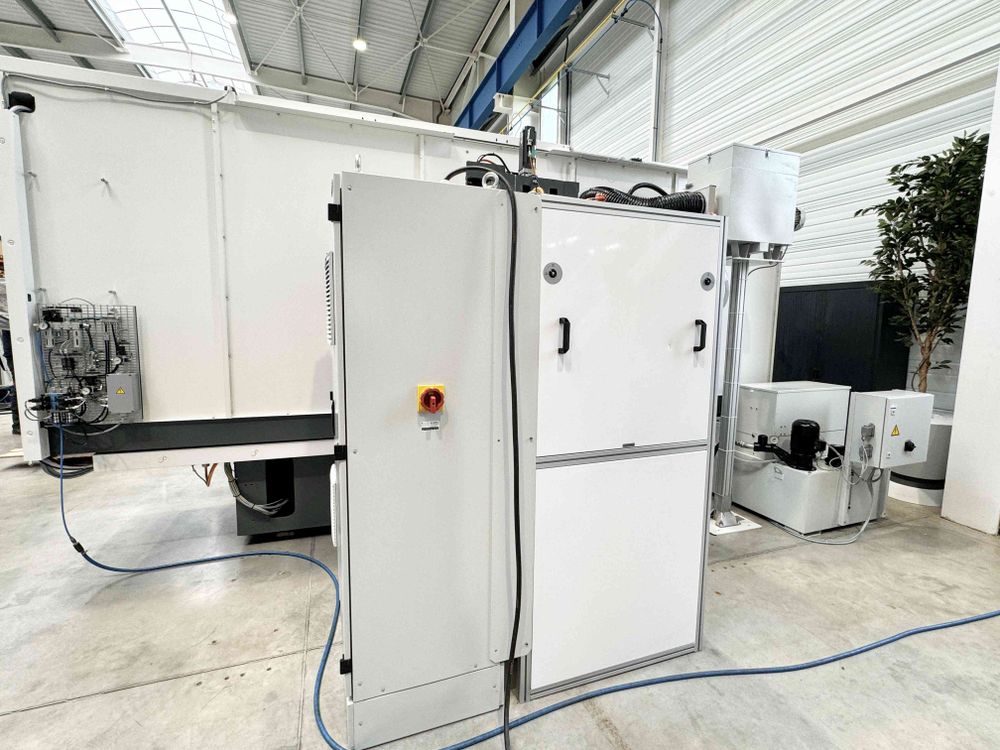

x1 coolant tank + paper filtration system DGS type SBF150/650
x1 oil mist extractor (2000 m3/h) SARA type UC 2 SD/S3

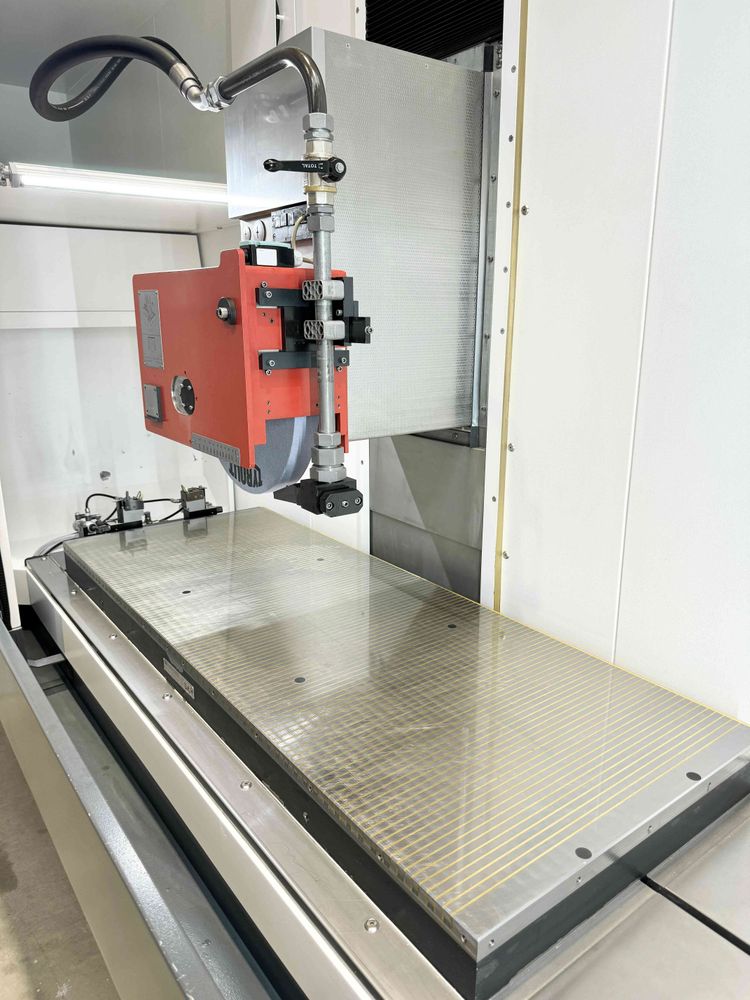

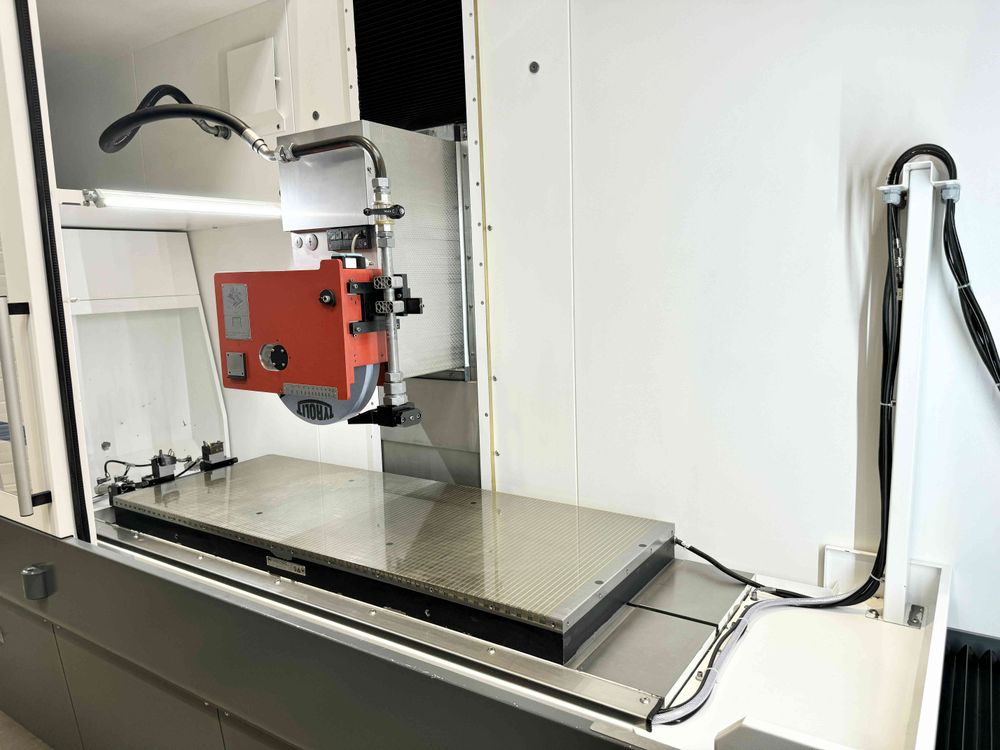

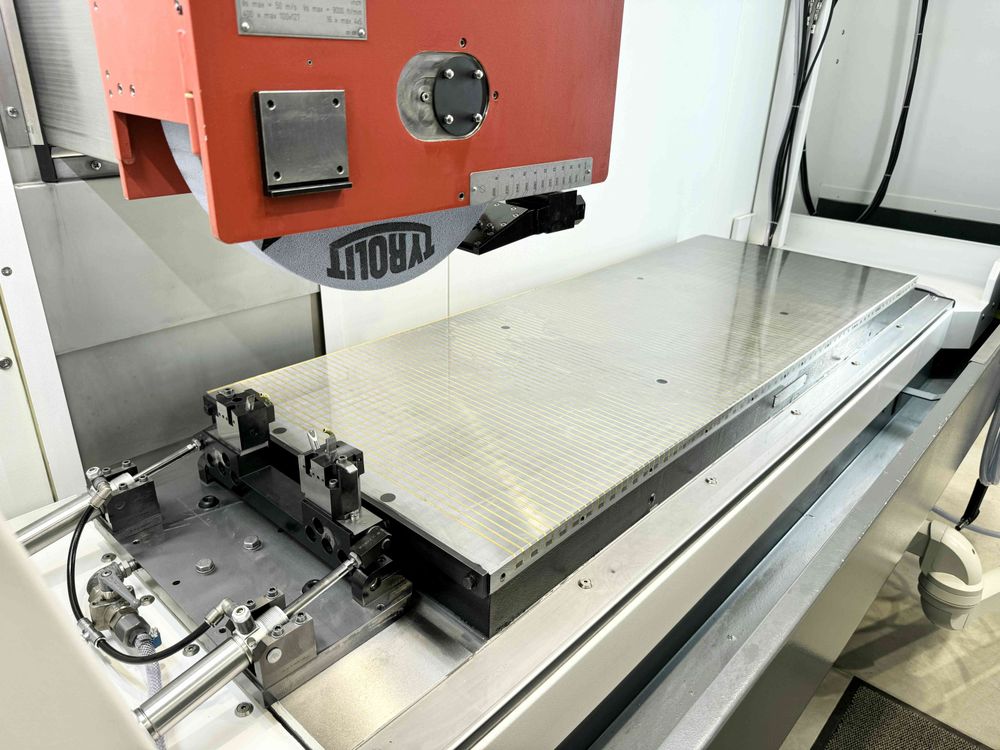

x1 1600*600 [mm] electromagnetic clamping plate SAV type B-243.70 - 1600 x 600 - 13
x1 lifting dressing device for peripheral, side and profile dressing
x5 grinding wheel flanges
x15 grinding wheels Ø400 [mm]
x1 wheel balancing bench
x1 set of manuals + CD

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
