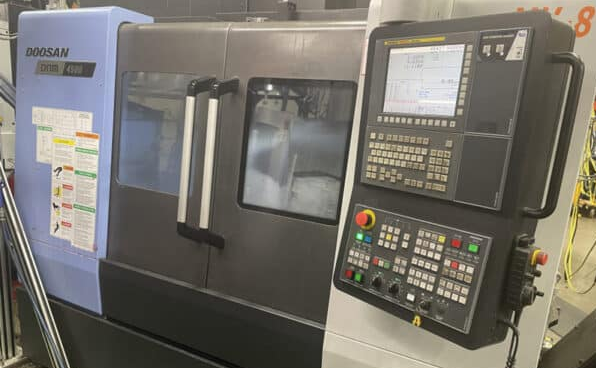

Doosan DNM4500 3 Axis

X-axis travel: 31.5"
Y-axis travel: 17.7"
Z-axis travel: 20.1"
control: Doosan Fanuc I Series (Fanuc Oi-MF)
table size: 39.4" x 17.7"
table load capacity: 1322 lbs
distance spindle nose to table top: 5.9" – 26"
rapid traverse rate (X, Y): 1417 IPM
rapid traverse rate (Z): 1181 IPM
spindle speed: 12,000 RPM
spindle motor: 25/15 HP
spindle torque max: 86.9 ft-lbs
spindle taper: CAT40
tool capacity: 30
max tool diameter: 3.1" / 4.9" without adjacent
max tool length: 11.8"
max tool weight: 17.6 lbs
tool change time (tool to tool / chip to chip): 1.2 sec / 3.2 sec
coolant thru spindle: yes
chip conveyor: yes
machine dimensions: 85" x 103" x 117.5"
machine weight: 11,023 lbs
