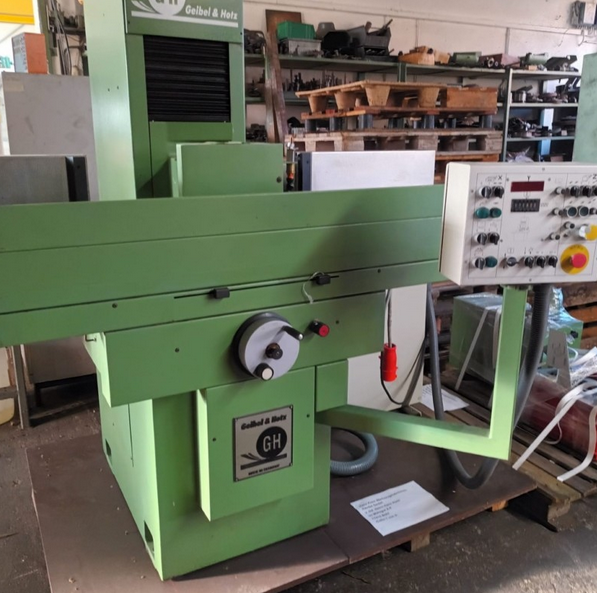

Geibel & Hotz FS 40 Compact

Grinding length: 400 mm
Grinding width: 200 mm
Workpiece height: 300 mm
Table longitudinal travel: max. 420 mm
Table cross travel: max. 190 mm
Distance spindle center to table: 90 - 415 mm
Table speed: 2 - 28 m/min
Table load: max. 150 kg
Intermittent cross feed of table: 3 - 20 mm
Rapid cross feed: 7 mm/min
Rapid vertical feed: 180 mm/min
Grinding wheel dimensions: ø 225 x 25 x ø 51 mm
Total power requirement: 7 kW
Machine weight: approx. 1.5 t
Machine dimensions L x W x H: 2.20 x 1.46 x 2.10 m
Magnetic plate 400 x 200 mm
Grinding wheel with flange
Balancing scale
1 flange separately
2 grinding wheels separately
Digital on Y-axis
Wet grinding attachment
