Haas Haas CNC Control 2400 rpm ST-35 2 Axis

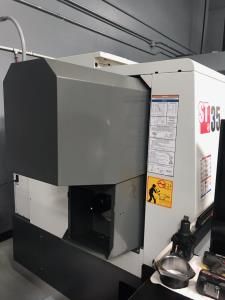

HAAS ST-35 2014

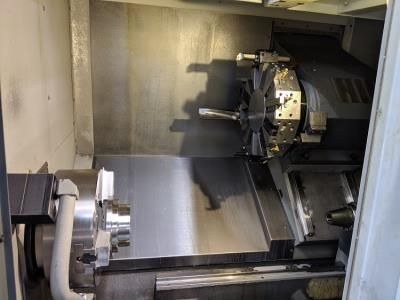

CNC Turning Center
15” 3-Jaw Chuck
Swing Over Apron / Over Cross Slide 31.8” / 20.8”
Max Turning Diameter / Length 21” / 26”
Distance Between Centers 30”
X-Axis Travel 12.5”
Z-Axis Travel 26”
Spindle Speed (Option Purchased) 2,400 RPM
Spindle Bore / Bar Capacity 4.62” / 4.0”
Spindle Motor (High Torque Option Purchased) 40 H.P
Spindle Nose A2-8
Turret Stations 12 Station
Chuck Size Equipped 15” 3-Jaw
Machine Dimensions (L x W x H) 164” L x 79” W x 96” H
Machine Weight 14,300 Lbs

Equipped With:
Haas CNC Control
Programmable Tailstock
2-Speed Gear Box
High Torque Motor
Tool Setter & Chip Conveyor
15” 3-Jaw Chuck
Rigid Tapping
