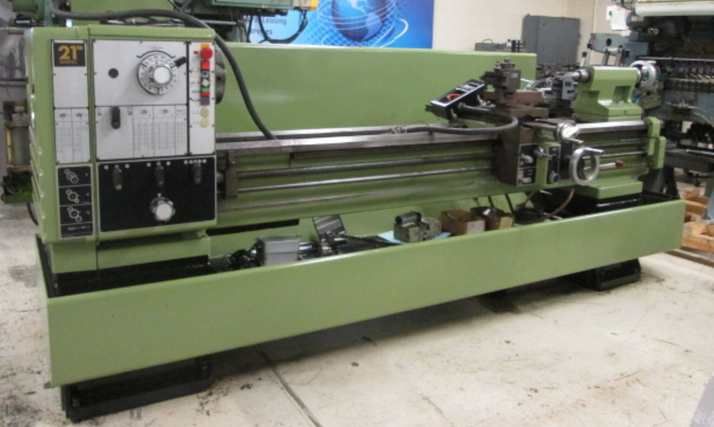

Harrison Engine Lathe 1600 RPM M500

Ref : 2315407-3
Condition : Used
Manufacturer : Harrison
Type : Engine Lathe
Spindle Speed : 1600 RPM
Model : M500
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 18 May. 2022

Harrison M500

Description Spec Values
Capacity: Swing Over Bed / Swing Over Cross Slide 21" / 14 1/2"
Distance Between Centers 81"
Spindle: Spindle Speeds Minimum - Maximum (18) 31 - 1,600 RPM
Main Motor (HP) 12 HP
Spindle Bore / Through Hole 3.375" / 3.375" / D1-8
Thread Range Inch (51) 2 - 84 TPI
Thread Range Metric (54) 0.2 - 14 MM
Tailstock: Stroke of Body / Quill 75" / 6 1/8"
Quill Diameter / Taper 2.87" / MT # 5
Dimensions: Floor Space (L x W x H) 146" x 36" x 60"
Weight (approx.) 5,000 Lbs

Equipped With
Additional Info.: 12" 3-Jaw Chuck
Hard Ways
Trav-a-Dial
Coolant System
Thread Dial
Chip Pan
Trak DRO's
15" x 5.25" Removable Bed Gap
