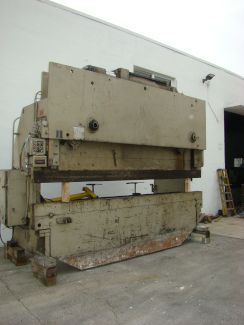

HTC 300G-14HS 300 Ton
AMERICA North (USA-Canada-Mexico)
HTC 300G-14HS
Year of manufacture 1987
SPECIFICATIONS:
Capacity 300 tons
Bending length, overall 14'
Distance between housing 12'-5"
Bending capacity-- 12' x 1/2"
14' x 5/16"
Maximum stroke-variable 0 to 7"
Die space--open 14-1/2"
--closed 7-1/2"
Depth of throat 8"
Pit depth 12"
Motor 25 HP
Electronics 230/460/3/60
Weight, approx. 47,000 lbs.
Dimensions (L x W x H) 170" x 87" x 137"
EQUIPPED WITH:
Foot switch, Full length die rail, Powered front operated back guage
Ram speed controlled by fast approach, slow press and high speed return
Manual central lubrication, Manual six-station depth stop
14' long four way die with 2", 3", 4" and 5" "V's" (new cost $17,000.00)
10' long 5/8" gooseneck punch (new cost $1,400.00)
