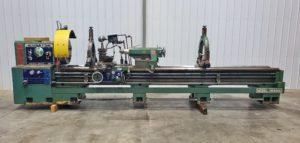

30" X 160" KINGSTON MODEL 30 POWER HR 4000 HEAVY DUTY ENGINE LATHE
Specifications:
Swing over Bed 30”
Swing over Cross Slide 20.7”
Swing over Gap 41.2”
Distance between Centers 160”
Width of Bed 22”
Height from Floor to Work Center 46.5”
Spindle Bore 4.09”
Taper of Spindle Bore & Center ASA #450 x MT #6
Type of Spindle Nose D1-11
Number of Spindle Speeds 16
Spindle Speeds
Number of Feed Changes Fine (20), Normal (40), Course (30)
Range of Feeds per Revolution 0.0384” – 0.2694”
Longitudinal Cross ½ of Longitudinal Feed
Leadscrew Diameter & Threads per Inch 1.9”, 2 TPI
Whitworth Threads (40) 2 – 28 TPI / Course 5/8”-8” Pitch (16)
Metric Threads (31) 1-14 / Course 16 – 200mm Pitch (61)
Module Threads (20) .05 – 7 M / Course 8 – 56 M (30)
DP Threads (40) 56 – 4 / Course 3.5” – .5” DP (30)
Maximum Travel of Compound 9.4”
Maximum Travel of Cross Slide 21.2”
Tailstock Quill Travel 11.8”
Tailstock Quill Diameter 5.1”
Tailstock Center MT #6
Main Drive Motor 20 HP
Coolant Pump Motor ¼ HP
Dimensions 82” x 256”
Approximate Height 52.7”
Approximate Weight 14,300 lbs.
Lathe is equipped with a 13.5” Steady Rest, 20” Steady Rest, 24.5” 4 Jaw Chuck, Dorian HDSIT-70 Tool Post Holder and Newall DP 800 2 Axis DRO.
