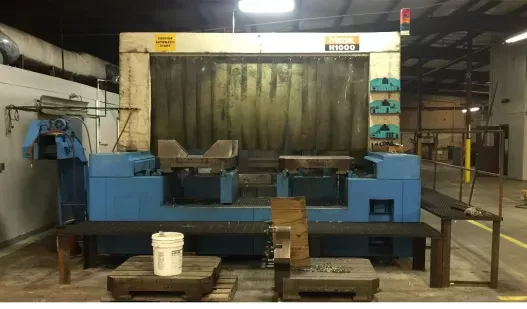

Mazak H-1000 4 Axis

Mazak H-1000
1989

Specifications
Table/Pallet: Width 39.4 "
Length 39.4 "
Number of Table/Pallet(s) 2
Indexing 360,000 °
Maximum Load 6600 lbs
Travels: X-Axis Travel 64.6 "
Y-Axis Travel 48 "
Z-Axis Travel 39.4 "
Spindle: Spindle Speed: Minimum (RPM) 20 rpm
Maximum 4000 rpm
Spindle Taper 50
Main Motor (HP) 40 hp
Tool Changer: Tool Changer Positions 40 atc
Equipped With: Fanuc 11M 4-Axis CNC Control
Shuttle Pallets
(2) Extra Pallets
Coolant Thru Spindle
Flood Coolant System
All Available Manuals
Chip Conveyor
Full 4-Axis (NC Rotary)
Note: Machine may be inspected under power.
