Mazak MAZATROL T-PLUS 5000 rpm QUICK TURN 15MS MARK II 3 Axis

Ref : 2062652-3-AW
Condition : Used
Manufacturer : Mazak
Controller : MAZATROL T-PLUS
Spindle Speed : 5000 rpm
Model : QUICK TURN 15MS MARK II
Nb Of Axis : 3 Axis
Year(s) : 1997
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 28 Aug. 2019

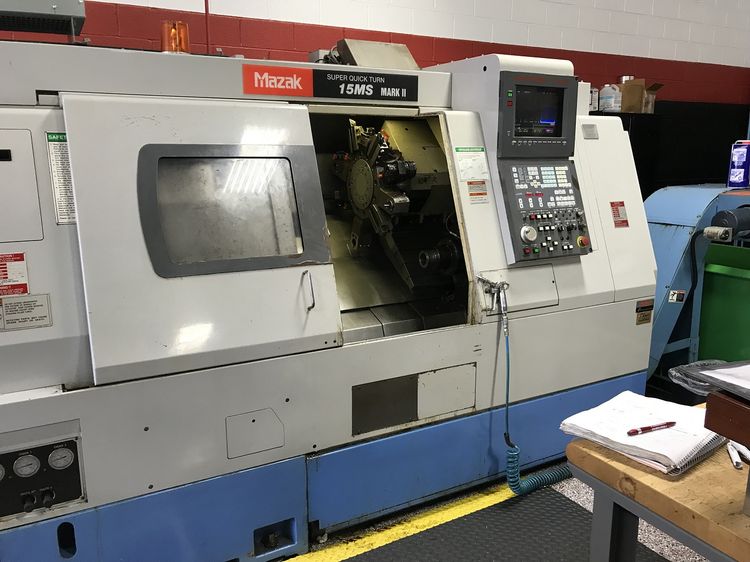

MAZAK QUICK TURN 15MS MARK II 1997

Mazak SQT15MSII, T-Plus, 8" Chuck, 21" Swing, Live Milling, Sub Spindle
12 ATC, 5K Spindle, Presetter, C/C, Misc ID/OD Holders, Live Holders, 1997

CNC Control yes
Type of CNC Control MAZATROL T-PLUS
# Axis 4
Chuck Size 8 inches
Swing 20.7 inches
Turning Diameter 11.8 inches
Y Axis (Yes / No) no
X Axis Rapid Feedrate 1181 inches-per-minute
Z Axis Rapid Feedrate 1181 inches-per-minute
Spindle Speed (RPM) 5000
Live Milling (Yes / No) yes
Turret Capacity 12
Tailstock (Yes/No) no
Bar Capacity 2.0 inches
X Axis Travel 7.1 inches
Z Axis Travel 24.5 inches
Weight 11000 pounds
Sub Spindle Speed (RPM) 4000
Sub Spindle Motor 10 Horsepower
Live Milling Speed (RPM) 3000
Live Milling Motor 5 Horsepower

Equipped With
Mazatrol T-Plus
Chip Conveyor
Tool Pre-Setter
Misc ID/OD Holders
(2) Live Holders
