Mecon 200CCS48 / 500F48HD Coil Weight 20000 pounds

Ref : 2153721-3-AW
Condition : Used
Manufacturer : Mecon
Model : 200CCS48 / 500F48HD
Capacity : Coil Weight 20000 pounds
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 10 Jun. 2022

MECON
200CCS48 / 500F48HD

Coil Weight 20000 pounds
Coil Width 48 inches
Coil Thickness .175 inches

Standard Specifications
20,000 lbs Max Coil Weight
48" Max. Coil Width
48" Wide x .175" Thickness Capacity @ Full Width
24" Wide x .250" Max. Thickness

Equipment and Features

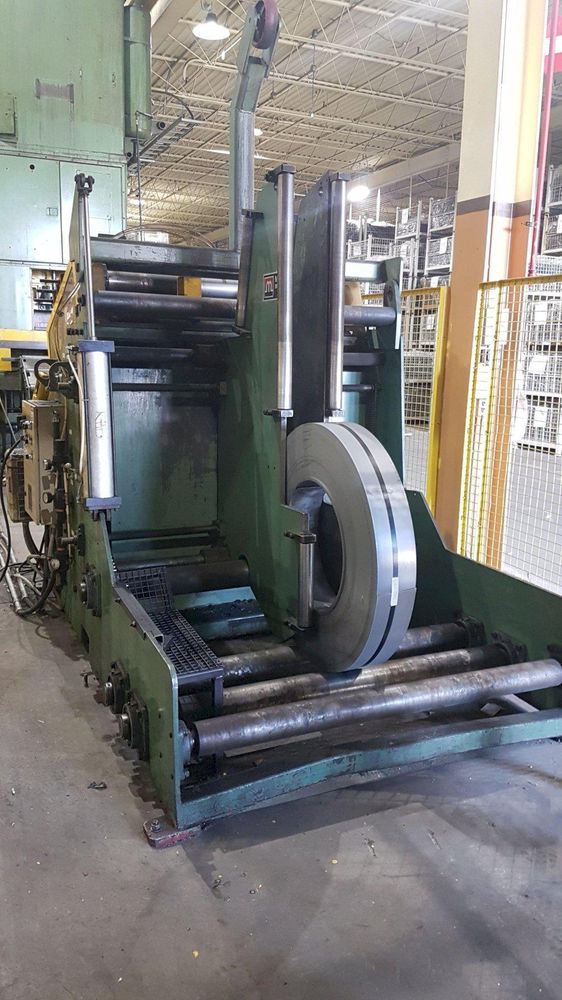

Coil Cradle - Straightener Model No. 200CCS-48
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls x 4" diameter
Individual upper straightening roll adjustments
Adjustable stock width edge guides
Coil hold down arm - dual cylinder
Adjustable coil side guide plates
Side plate rollers for wear protection
Variable speed payout
Jog forward and reverse
Auto / Run cycle
Loop control
Operator's control station

Servo Roll Feed Model No. 500F48HD
Four-inch diameter feed rolls
Matte chrome finish on upper and lower rolls
Pneumatic upper feed roll lift and pilot
Adjustable stock width edge guides
Cascade loop support rollers
Free standing base
Adjustable pass line
New AC Servo drive and control package (consult sales for full details)
Color touch screen HMI
Job memory, micro adjust, full feature menu
Pilot pin mode
480 V
