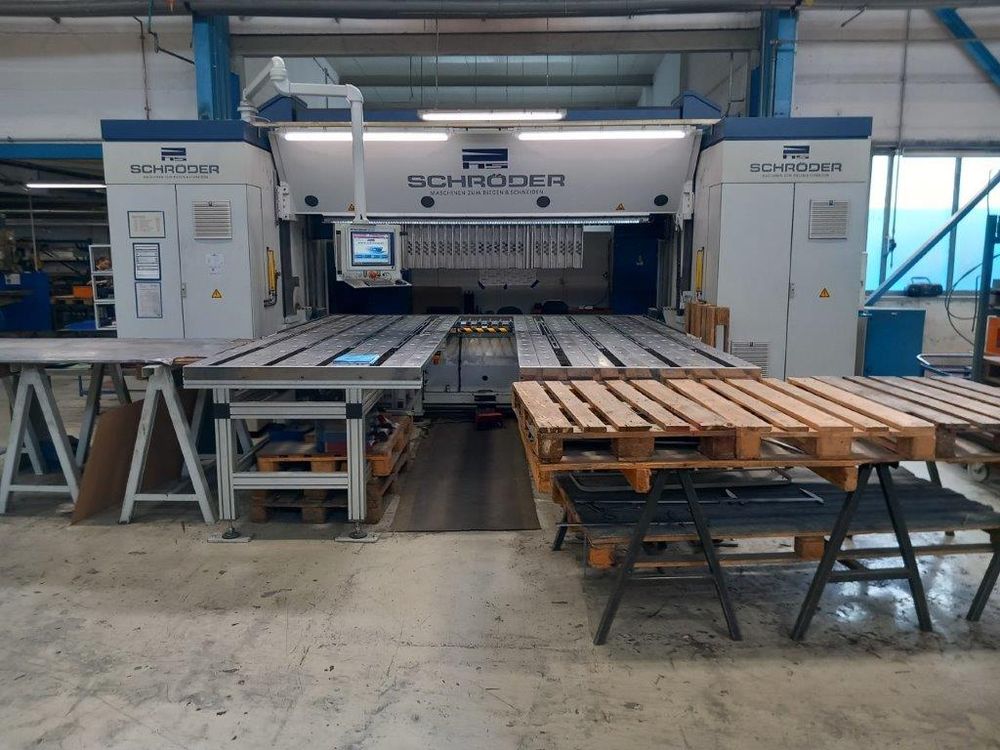

Schroder MAK 4 EVO UD 3200 / 6.0 Capacity at 400 N/mm² 6.0 mm

Working length 3040 mm
Upper beam stroke 850 mm
Bending beam adjustment 180 mm
Upper beam drive power 2 × 9.45 kW
Bending beam drive power 2 × 9.42 kW
Power supply 400/230 V 50 Hz 3 Ph
Machine weight 20500 kg
Up and down bending beam automatically controlled
Positioning stop range 10–3250 mm
U-shape stop with 5 sectors left and right
Pneumatic lowering of stop fingers
Steel balls in support table
Servo converter controlled drives for upper beam
Servo converter controlled drives for bending beam
Servo converter controlled drives for D-axis
Servo converter controlled drives for stop
Upper beam geometry 180°
Upper beam pre-switching from 15 mm
Program-controlled motorized bending beam adjustment
Motorized bending center adjustment 100 mm
Bombing device for bending beam central adjustment
Two-pedal foot switch with protective cover
Foundation plates with dowels
Light curtain safety system with safety PLC for rear operation
POS 3000 3D graphics control
Three-dimensional view of product and machine
Free drawing product creation
Automatic bending sequence calculation
Fast axis control via Ethernet Powerlink
Open Ethernet interface
Swiveling control panel
21 inch TFT touch screen display
2.0 GB RAM
Intel Core i5 2.5 GHz processor
Unlimited product memory locations
Dynamic axis speeds and ramps
Partial steps in radius function over 1000
Unlimited tool memories
Tool setup instructions
Unlimited material data
Graphical collision detection
Metric and inch selection
