SCM TECNOMAX MB 21
Ref :
2744040-15-MT
Condition :
Used
Manufacturer :
SCM
Model :
TECNOMAX MB 21
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

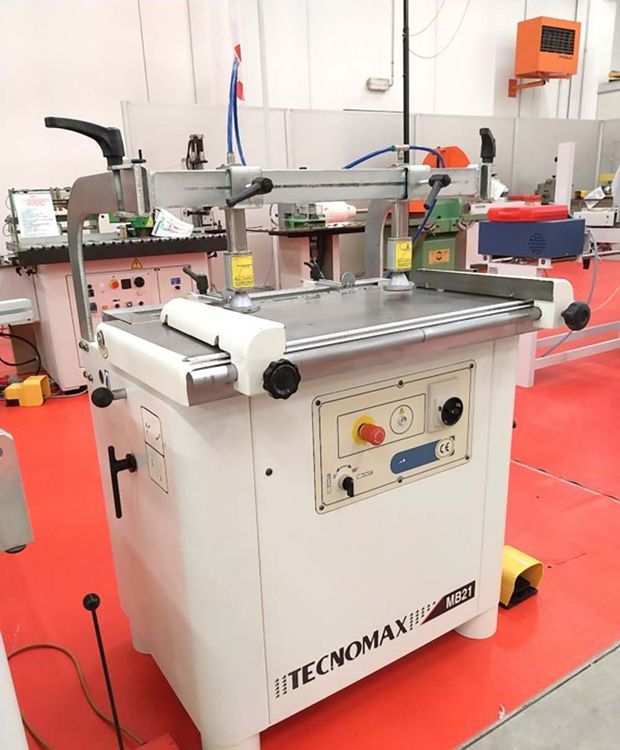

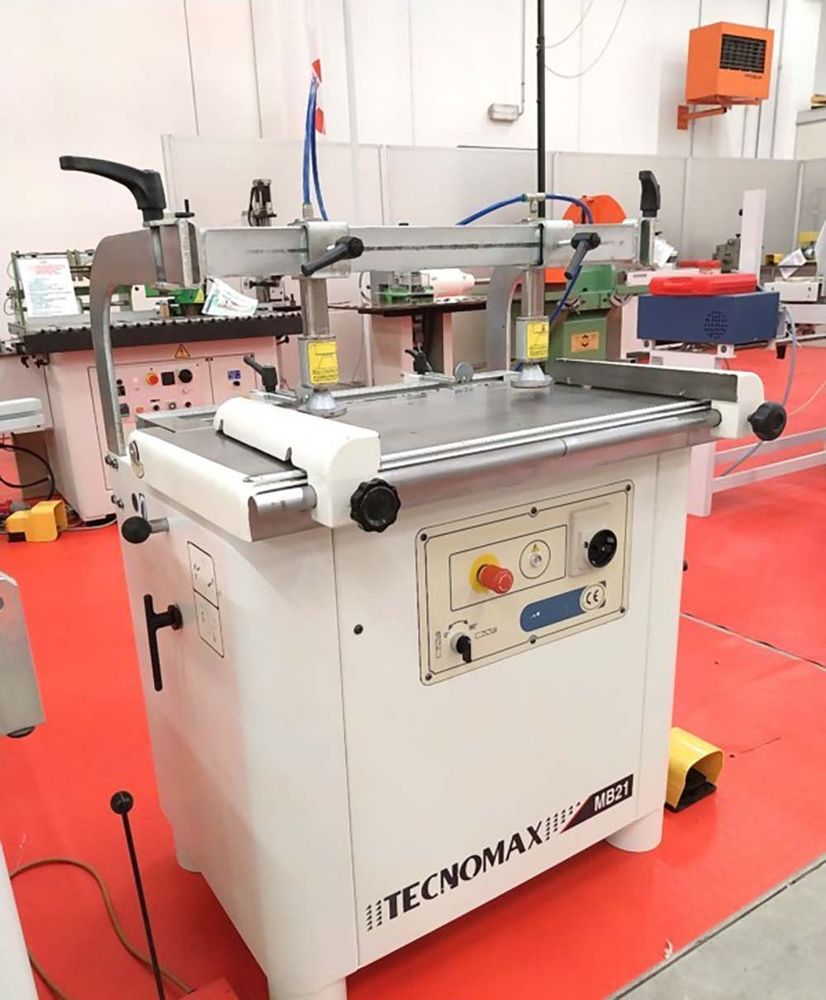

Multiple boring machine with 21 spindles for furniture, custom-made furnishings,
kitchens, bathroom furniture, panels and various - CE Standard
Technical data:
21 quick-release spindles
Spindle centre distance mm 32
Worktable height mm 900
Worktable dimensions mm 905 x 372
Max tool diameter mm 40
Max drilling centre distance mm 640
Max drilling head stroke mm 70
Motor power Kw 1,8
Min/max panel thickness 10/85 mm
Manual movement for tilting the operating unit
N°2 pneumatic clamps
Side guide with stops
Compressed air 6 bar
Overall dimensions mm 1000 x 800 x 1300 h
Weight kg 273
