Spark Hollow Spindle Manual Lathe 315.0 Oil Country

Ref : 22722
Condition : Used
Manufacturer : Spark
Type : Hollow Spindle Manual Lathe
Spindle Speed : 315.0
Model : Oil Country
Year(s) : 2013
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 19 Jan. 2016

Reference #22722


40" x 118" Spark Hollow Spindle Manual Lathe
Model: Oil Country 1000 x 3000
Age: New

11.02" Spindle Bore Diameter

Maximum Swing Over Bedways ............ 39.37"
Maximum Swing Over Carriage ........... 27.55"
Distance Between Centers .............. 118.11"
Maximum Machining Length .............. 110.23"
Spindle Hole Diameter ................. 11.02"
Spindle Speeds (18) ................... 5-315 RPM
Weight Between Centers ................ 8,800 lbs
Crosslide Travel ...................... 23.62"
Topslide Travel ....................... 9.84"
Metric Thread Range (44) .............. 1-120 MM
Whitworth Thread Range (37) ........... 30-1+1/8 TI
Module Threads (46) ................... .5-60 MM
Tailstock Diameter .................... 4.72"
Tailstock Taper ....................... #6 MT
Tailstock Travel ...................... 11.81"
Spindle Motor ......................... 29 HP (22KW)
Bed Width ............................. 29.72"
Machine Dimensions .................... 216" x 67" x 59"
Machine Weight ........................ 14,960 lbs

EQUIPPED WITH:
Pendant Control

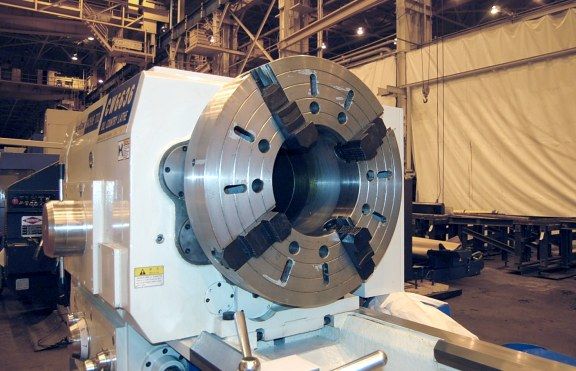

(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted

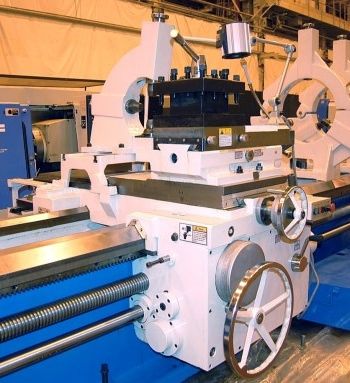

4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
(2) Large Roller Type Steady Rests: 1.96"-18.50"
Follow Rest: 1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
24 HP Spindle Motor 440V/3Ph/60Hz

Machine Sold with 1 Year Parts Warranty
