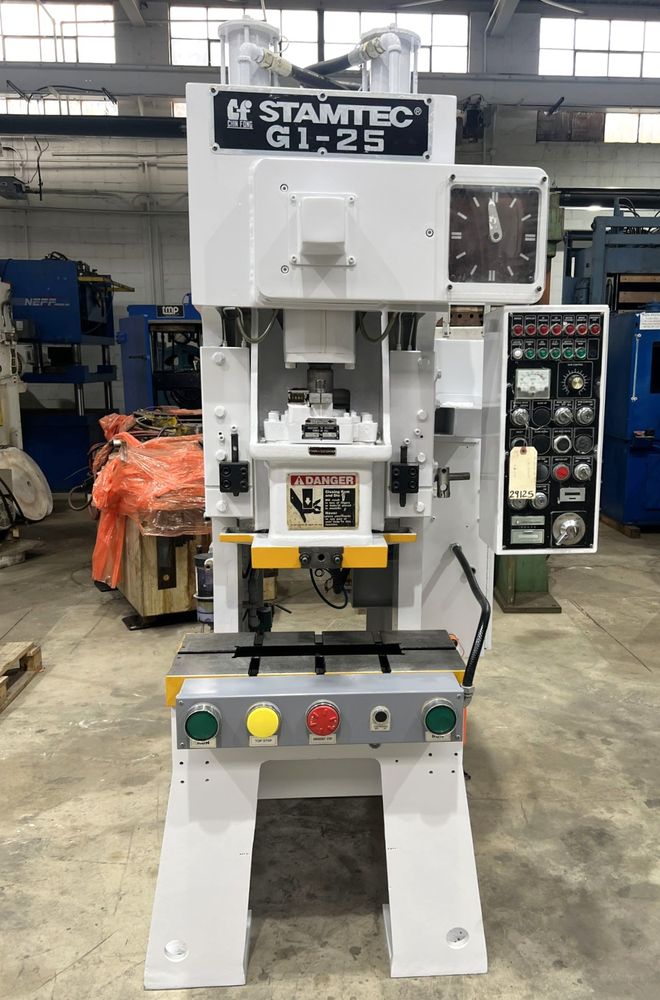

Stamtec G1-25N 27 ton

Press force: 27 ton
Stroke: 2.4"
Maximum die height: 7.9" over bolster
Bed area: 26.8" × 11.8"
Speed: 60–140 spm
Slide adjustment: 2" manual
Slide area: 11.8" × 8.7" (T-slotted)
Bolster plate: 3" × 26.8" × 11.8" (T-slotted)
Distance between uprights: 16.25"
Distance floor to bed: 27.25"
Clutch: air clutch / brake combination
Electrics: 5 hp 1750 rpm 240/480V 3-phase 60 Hz eddy current drive and press control
Approx dimensions: 94" × 45" × 60"
Approx weight: 5,000 lbs

Hydraulic overload protection
Low deflection frame
Rigid steel frame
Extra long 6-point centered gibs
Removable bolster plate
Removable slide plate
Automatic lubrication system
Dual air counterbalances
Single back-geared design
Floor standing
