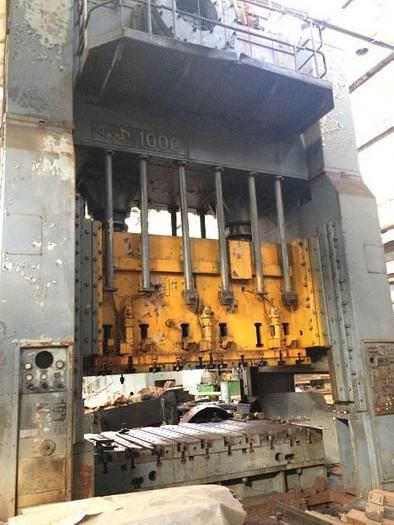

TMP KA3540 1000 ton
EUROPE (Western and Northern)
TMP VORONEZH KA3540,1000TN(moving table)
Year 1988
Nominal force 1000 ton
Slide stroke 400 mm
Moving Table (WxD) 3150x1800 mm
Press weight, kg 193000
Description
(side-front moving table)
Nominal force: 1000 ton
Slide stroke: 400 mm
Continuous slide strokes per 1 min: 20
Single slide strokes per 1 min: 16
Shut height: 1060 mm
Slide adjustment: 320 mm
Table dimensions: 3150x1800 mm
Slide dim., front-back: 1700 mm
Window H 1500 x W 1900 mm
Hydro pneumatic cushion in table
clamping force at P = 0.42 MPa
(P = 4.2 kg / cm2), kN 2000
ejection force P = 0.45 MPa
(P = 4.5 kg / cm2), kN 200
Main-drive electric motor power: 132 kW
DIMENSIONS: 5150x4700x11400 H floor7830 mm
WEIGHT:193 ton
