Tru-Turn Manual Lathe 315 RPM 1840/6M

Reference #30808

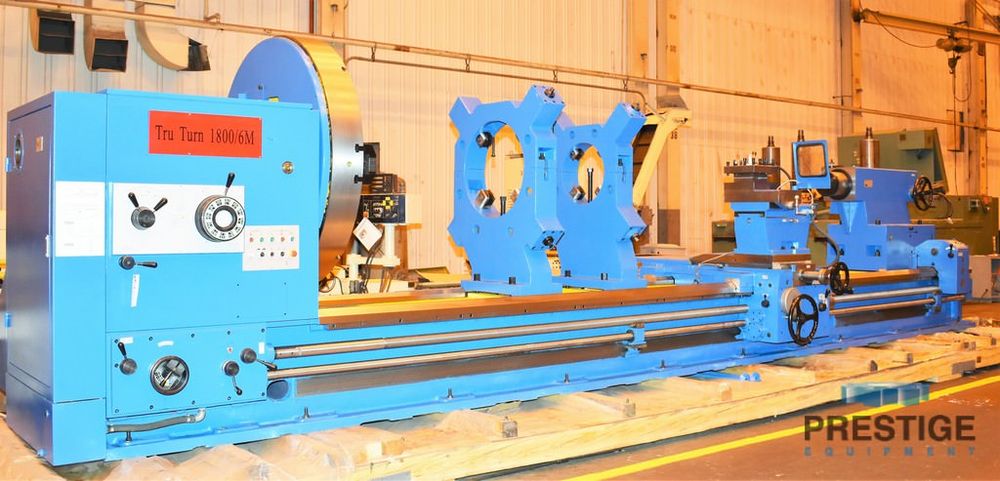

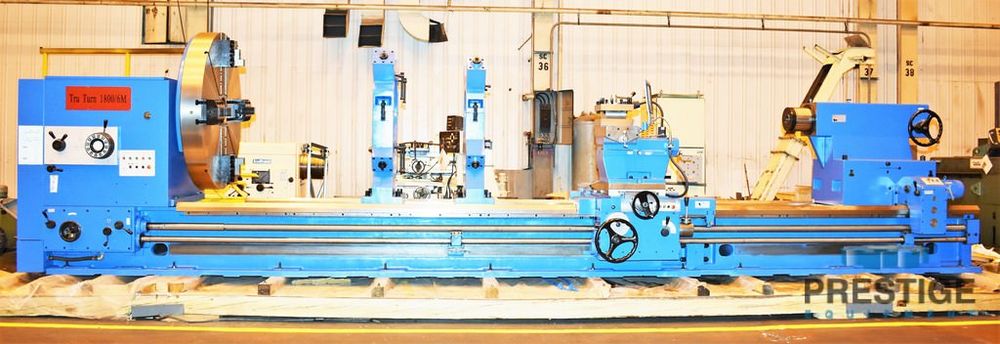

Tru Turn 1840/6M 72.44" x 236" Manual Lathe, Brand New 2019

FEATURES:
New, Never Used, In Stock, Immediate Availability!
Inch/Metric Threading
Hardened Ways

CAPACITY:
Swing Over Bed ....................... 72.44"
Swing Over Cross Slide ............... 57"
Width of Guide Way ................... 43.3"
Distance Between Centers ............. 236.22"
Spindle Hole ......................... 5.12"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Tailstock Diameter ................... 10.24"
Tailstock Travel ..................... 7.87"
Weight Capacity ...................... 33,000 Lbs
Machine Weight ....................... 52,000 Lbs
Floor Space L x W x Height ........... 372.3" x 94" x 88"

EQUIPPED WITH:

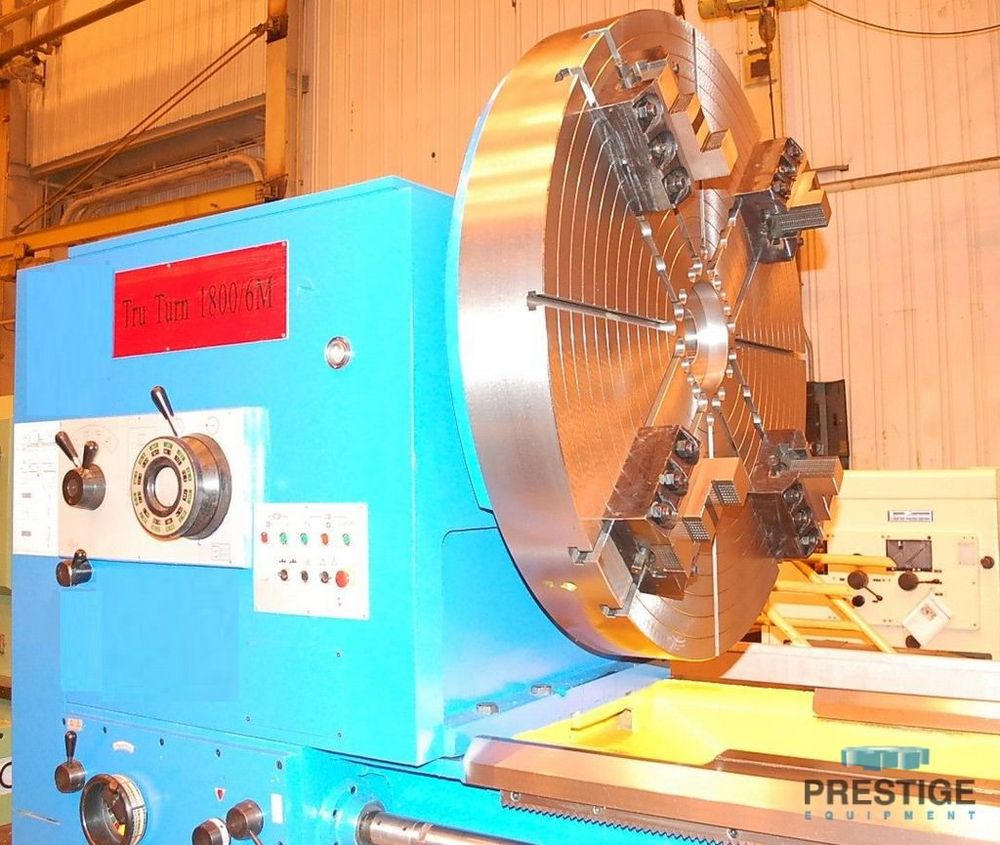

62.99" Diameter Face Plate with 4-Top Jaws

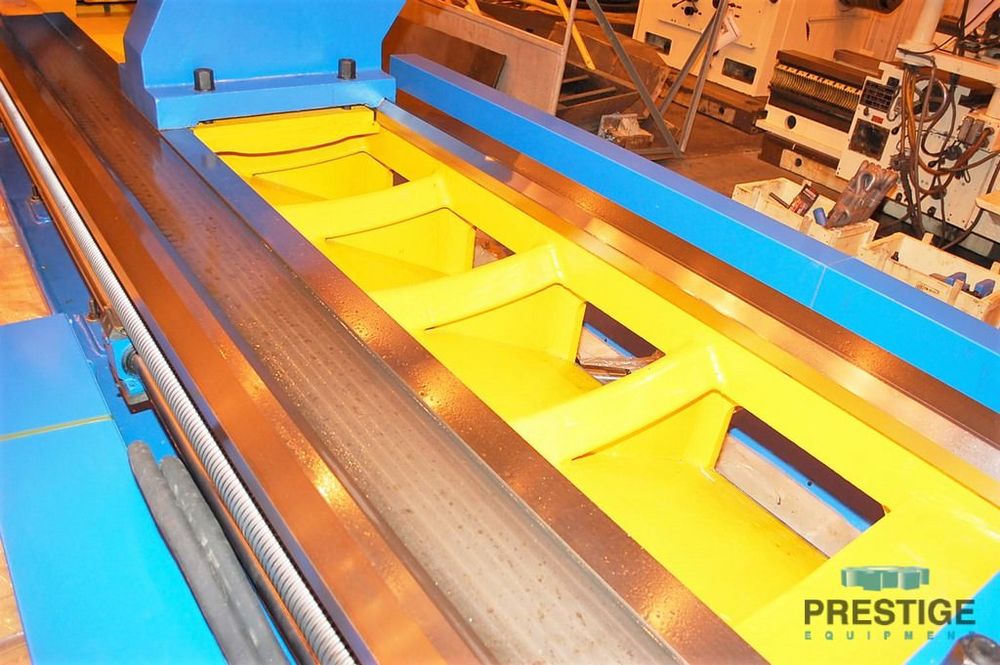

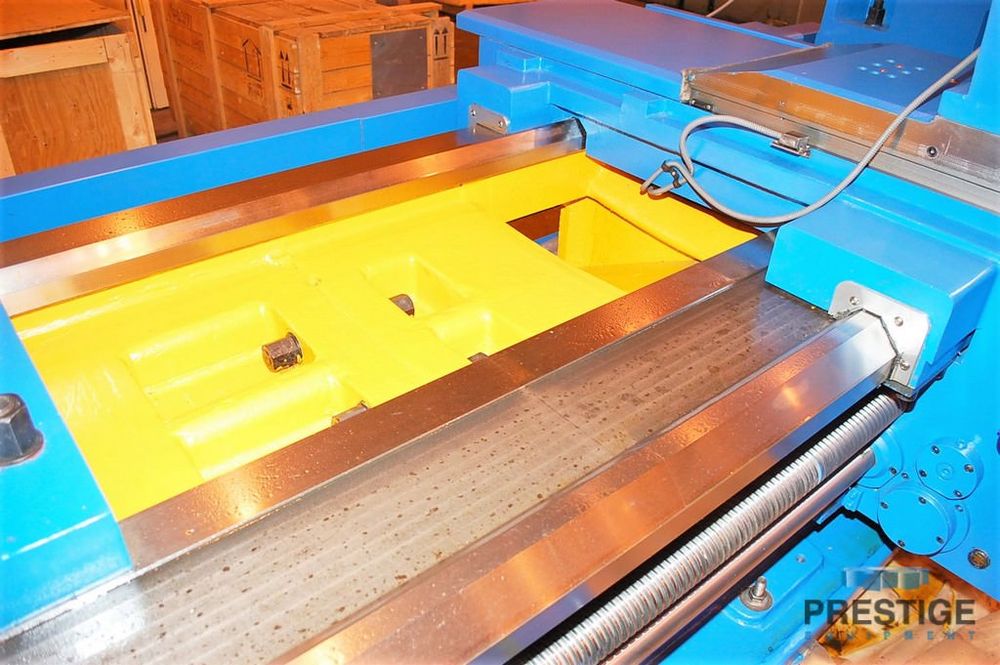

Flame Hardened Bed Ways

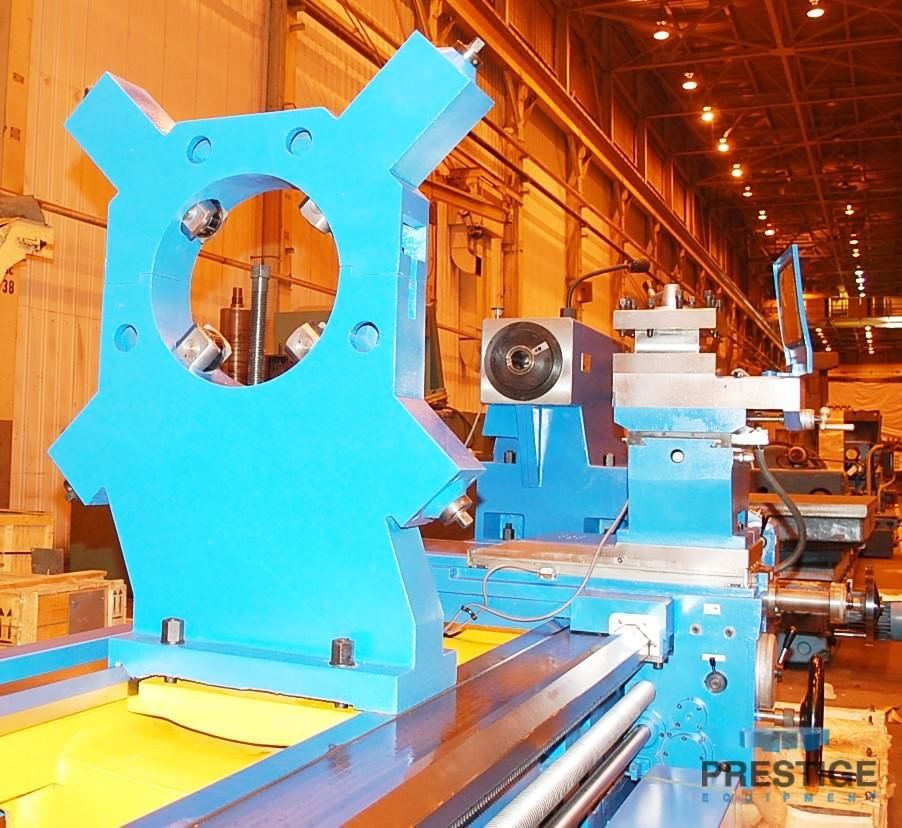

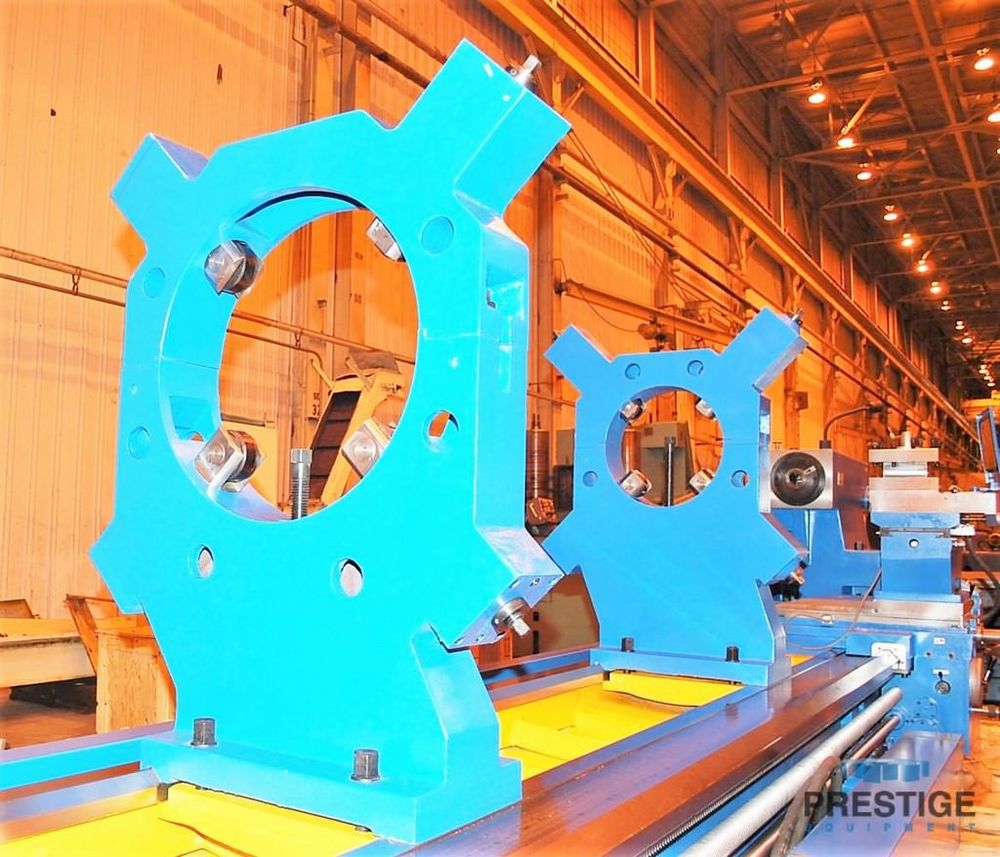

2-Roller Type Steady Rests: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting

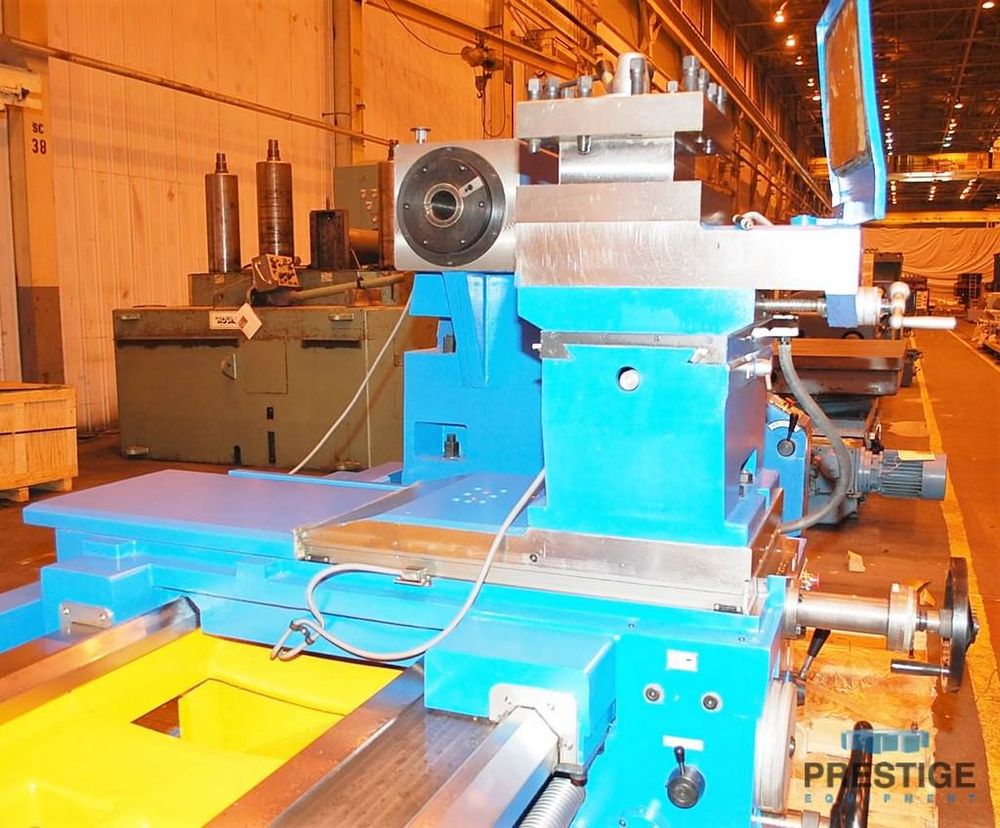

Swivel Compound & Tool Post
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System

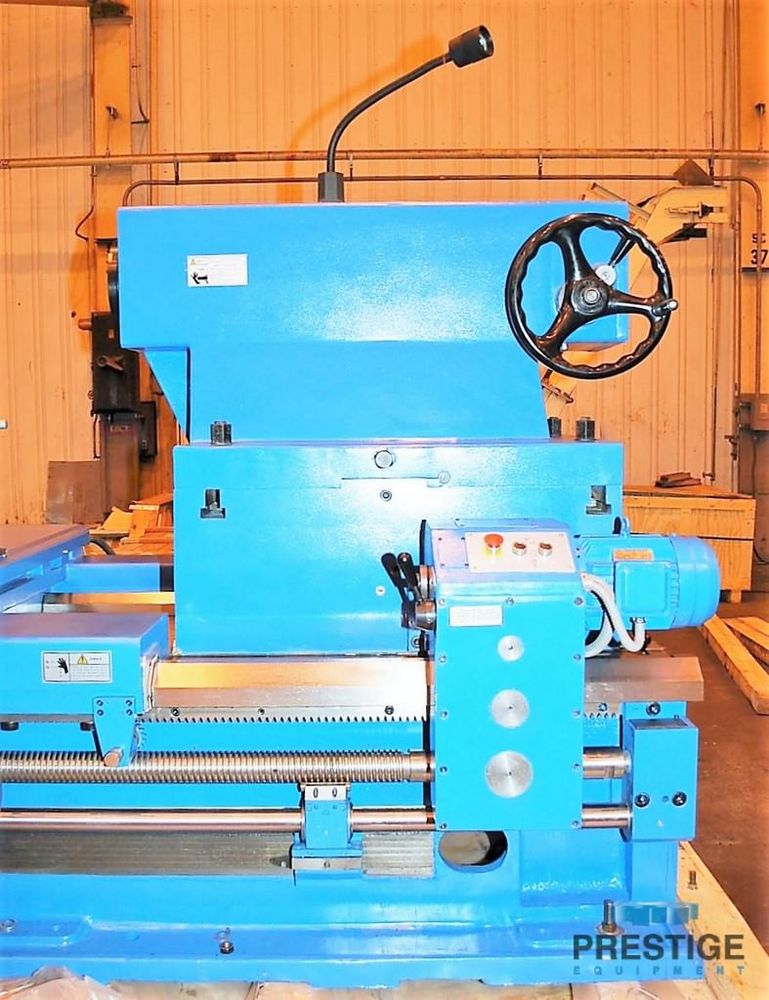

Motorized Tailstock
40 HP Drive Motor With Controls
440/3/60 Volt Electrics

NOTE:
In Stock, Immediate Availability!!
Inspect In Our Philadelphia PA Warehouse
