TMP, Voronezh KG2540A,1000TN 1000
Ref :
2513701-3
Condition :
Used
Manufacturer :
TMP, Voronezh
Model :
KG2540A,1000TN
Pressure :
1000
Year(s) :
1993
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
27 Mar. 2023

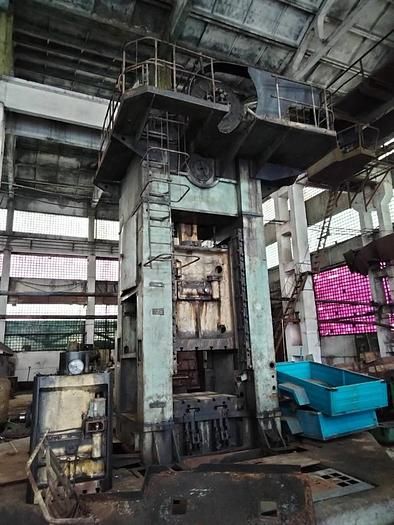

TMP VORONEZH KG2540A,1000TN
Year 1993
Capacity, ton 1000
Slider stroke, mm 400
Unattainable stroke, mm 12
Slider strokes, spm 20
Shut height, mm 730
Distance adjustment between table and slider, mm 200
Slider size, mm 1200 x 1200
Table size, mm 1250 x 1250
Table gap size, mm 800 x 800
Bolster plate thickness, mm 260
Pneumatic cushion capacity (eject), ton 40
Pneumatic cushion stroke, mm 160
Pneumatic cushion load, kg 4500
Main power drive, kW 75
Voltage, V 340
Machine dimensions, mm 4310 x 3820 x 6790
Machine weight, kg 77100
