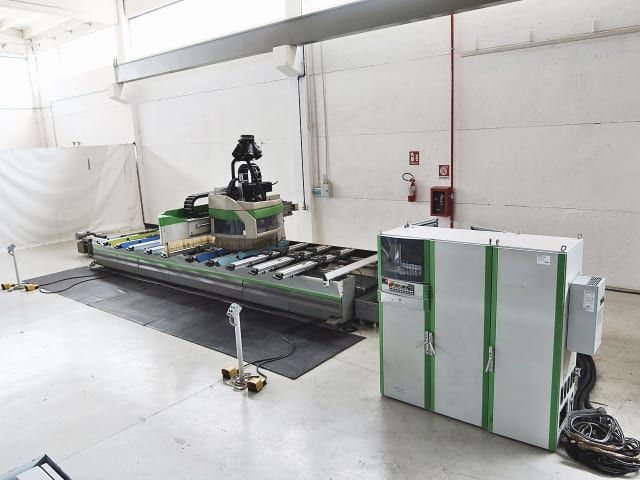

Biesse ROVER 37 XL 4 axes
EUROPE (Western and Northern)
CNC Machine Centres With Pod And Rail
Short Description:
X axis working area 6000 mm
Y axis working area 1850 mm
Working Table Pod and Rail
Main Electrospindle power 7.5 KW
Number of controlled axes 4 axes
Total number of drilling spindles 42
Total number of tool changer positions 7
Long Description :
Subfamily CNC Machine Centres With Pod And Rail
Type of work Drilling, Routing
X axis work area 6000 mm
X axis travel 6547 mm
Y axis work area 1850 mm
Y axis travel 2260 mm
Max panel passage 180 mm
No. work areas 2
Work table:
Work table bar with suction cup
No. bars with suction cup 10
Position readers
Suction cups to secure piece being processed
Vacuum pump
No. pumps 1
Single capacity 250 m3/h
Bore operator units 1
1
Unit top
Spindles for vertical boring 28
Spindles for horizontal boring in direction X 10
Spindles for horizontal boring in direction Y 4
Router Spindles 1
1
Unit top
No. controlled axes 4
Automatic tool change
Motor power 7.5 kw
Grooving unit 1
1
Unit top
Grooving unit
Unit fixed to create channels in direction X
Max. tool diameter 160 mm
Motor power 3 KW
Tool magazine 1
1
No. positions 7
Tool positioned on the head
Control system NC 1000
Protective mesh secured to the machine
Safety system Front safety mats
Waste chip conveyor
