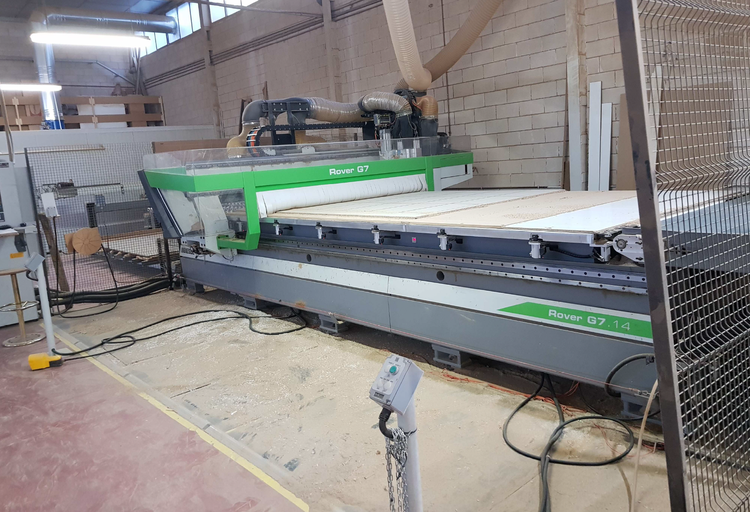

Biesse ROVER G 714, CNC 3

Ref : 2232121-15-MT
Condition : Used
Manufacturer : Biesse
Model : ROVER G 714, CNC
Nb Of Axis : 3
Year(s) : 2010
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 07 Jun. 2022

X / Y work table dimensions: 4300 mm x 2205 mm
Z part passage: 160 mm
Main vertical motor power: 16 Hp
No. vertical drill holders: 14
Horizontal drill chuck: Y 1 + 1 / X 2 + 2
Rear circular tool magazine of positions: 8
2 Vacuum pump: 300 m3 / hour
Star / stop remote control
Safety mats on the front

- working hours ........ 5413 working hours
- software ................... Biessework and Biesse Nesting
- possible problems with machine ...... The machine has been disassembled running.
- reason for selling .............. The client closed his business
- is machine still running? (possible to inspect) ....... The machine can be seen disassembled, not working.
Video available

The machine was disassembled by 2 Biesse technicians

7510084 NR 1 automatic printing and application system
adhesive labels for load banks.

The load bank arm is equipped with a special suction cup, controlled by CN, which allows the collection of the label from the printer and its exact placement on the panel, according to the program data. The printer is fixed, placed next to the bench, so that it does not suffer mechanical stimulation any. The special suction cup collects each label and apply it on the panel, in the desired position. In this way only the Labels are mobilized, not the printer. The printer position is the most distant possible from the workplace and allows easy access for label replacement and ribbon.

Technical characteristics:
* Electronic label printer with peeler; with print mode with system thermal transfer (with ribbon) or system direct thermal. Diagnostic messages (for example, finished paper, ribbon terminated, printer not connected, etc.)

Can see directly on the screen of the numerical control;
* The CN memorizes in real time the number of printed labels, indicating when the remaining availability of labels or ribbon,
descends below a user-defined value;
* Possibility of printing barcodes, graphics and text;
* Label width min 51 mm - max 100 mm;
* Label length min 40 mm - max 100 mm;
* Graphic resolution 200 dpi;
* 16 Mb of DRAM;
* Exercise temperature: from 5 to 40C;
* Automatic calibration.
* Connection to the machine through Ethernet.
