Cazeneuve Engine Lathe 2000 RPM HB 575 x EP 1500 mm

Ref : 2725736-3-MT

Condition : Used

Manufacturer : Cazeneuve

Type : Engine Lathe

Spindle Speed : 2000 RPM

Model : HB 575 x EP 1500 mm

Year(s) : 575

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

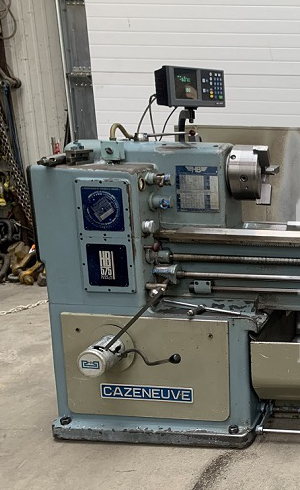

CAZENEUVE HB 575 x EP 1500 mm

Distance between centers: 1500 mm
Maximum swing over bed: 575 mm
Maximum swing over saddle: 300 mm
Spindle bore diameter: 51 mm
Spindle speed range: 25 to 2000 RPM
Turret type: Multifix
Chuck type: 3-jaw
Chuck diameter: 250 mm
Threading types: Metric and Whitworth
Steady rests: Fixed and follow
Tailstock taper: CM5
Digital scale: 2-axis ACU-RITE (X-axis defective)
Equipped with lubricant pump
Voltage: 380 V
Length: 300 mm
Width with tank: 1500 mm
Total height: 1700 mm
Weight: approximately 2500 kg
