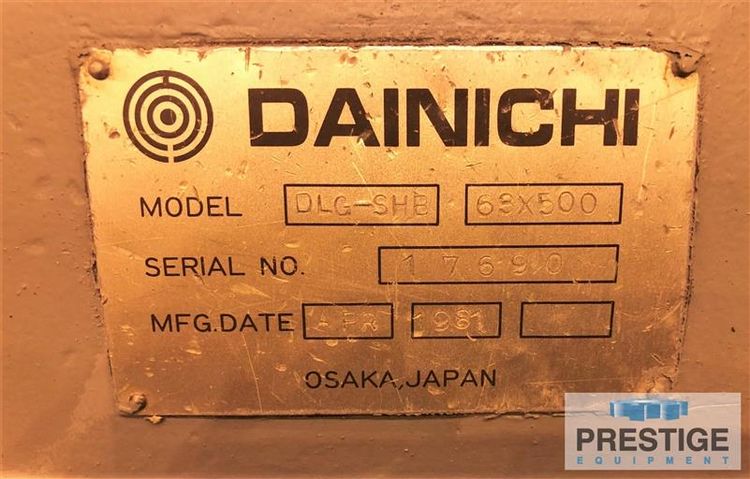

Dainichi Manual Lathe DLG-SHB
United States (USA)
Reference #31604
Dainichi 24" x 196" DLG-SHB Manual Lathe
FEATURES:
Teledyne Gurley Pathfinder 2-Axis Digital Readout
Inch/Metric Threading
Taper Attachment

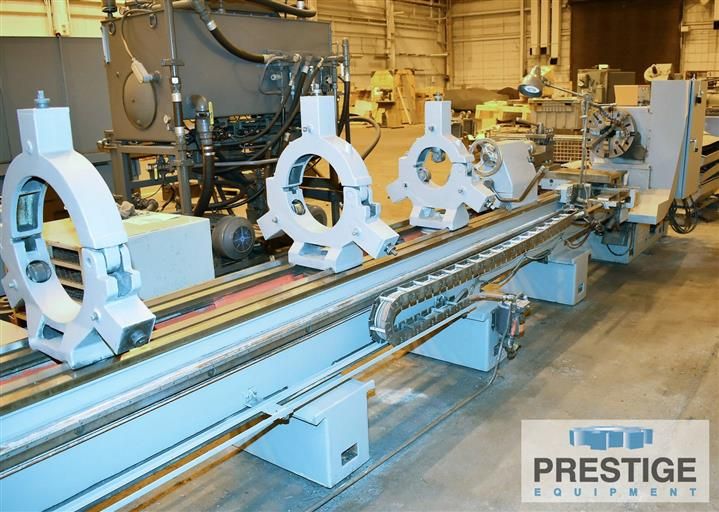

3-Steady Rests
CAPACITY:
Maximum Swing Over Bedways ............ 24.80"
Distance Between Centers .............. 196.85"
Maximum Swing Over Cross Slide ........ 15.74"
Maximum Swing Over Gap ................ 35.43"
Length of Gap ......................... 11.81"
Spindle Speeds ........................ 9 - 1600 RPM
Spindle Nose .......................... A1-11
Spindle Hole Diameter ................. 1.33"
Longitudinal Feed Rate ................ .002 - .13 IPR
Cross Feed Rate ....................... .001 - .06 IPR
Metric Threading, 31 Changes .......... .05 - 28 mm
Inch Threading, 38 Changes ............ 56 - 1 TPI

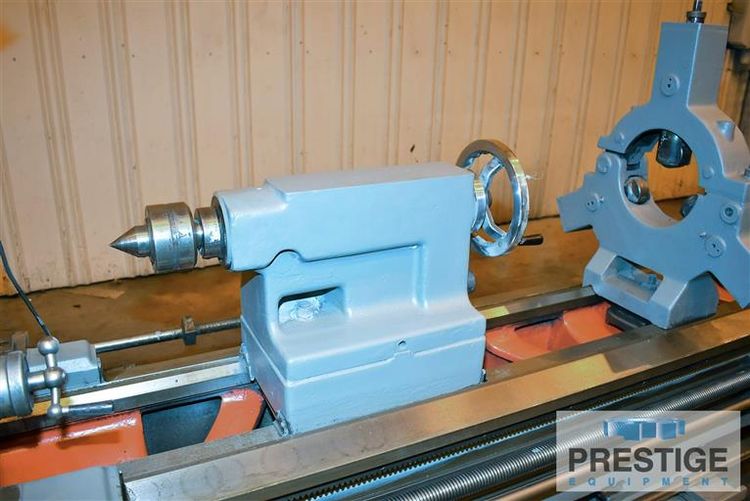

Tailstock Quill Diameter .............. 3.14"
Tailstock Quill Travel ................ 7.87"
Approximate Machine Weight ............ 9,460 Lbs
EQUIPPED WITH:

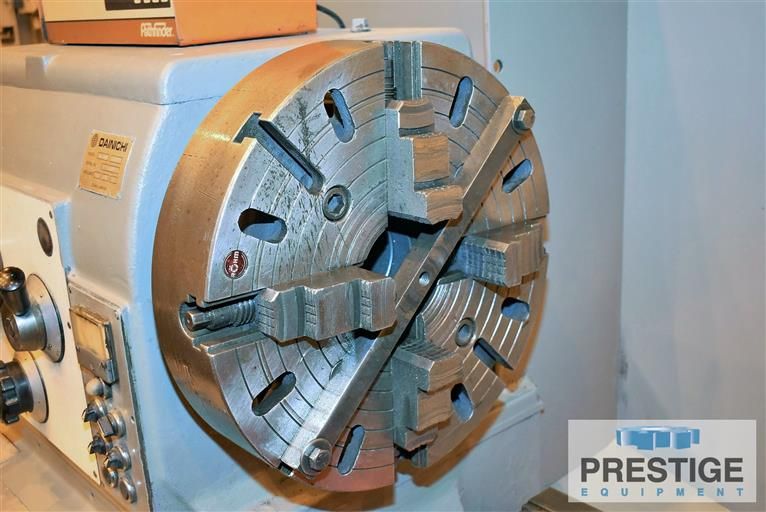

18" Rohm 4-Jaw Chuck
Teledyne Gurley Pathfinder 2-Axis Digital Readout
Inch/Metric Threading

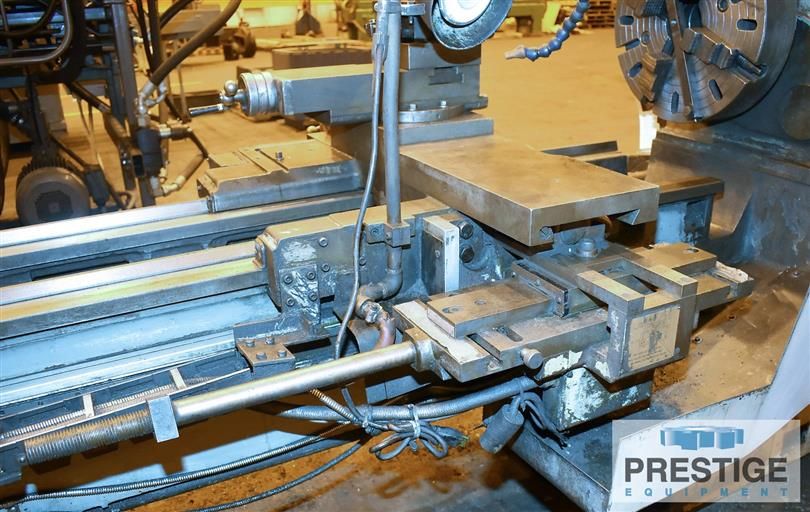

Taper Attachment

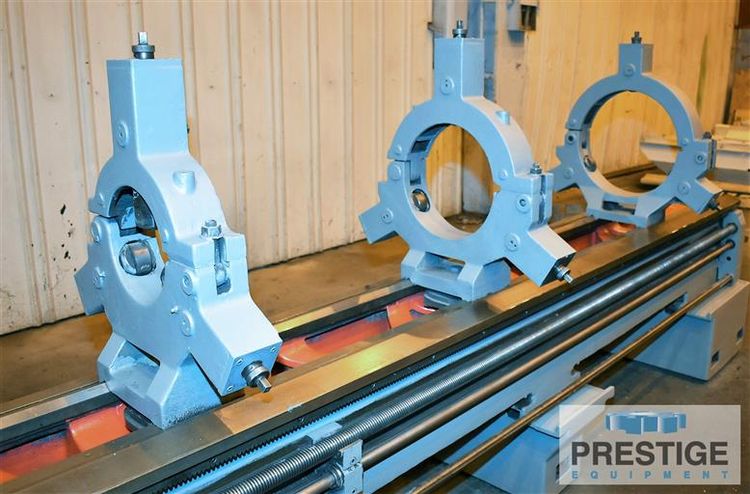

3 - Steady Rests (9", 12.5", 16.5")
Chip Pans
NOTE:
Inspect Under Power in Philadelphia, PA
