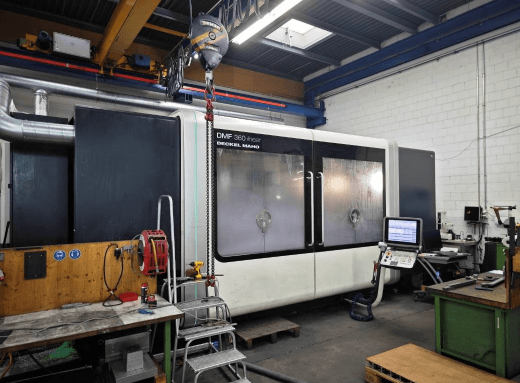

DMG Siemens 840D solutionline 18,000 rpm DMF 360 linear 4 Axis

X-axis travel: 3600 mm
Y-axis travel: 1100 mm
Z-axis travel: 900 mm
Table size: 4200 x 1100 mm
Control: Siemens 840D solutionline
B-axis swivel head speed range: 20 – 18,000 rpm
X-axis rapid feed: 80 m/min

Features / Options:
Built-in rotary table diameter 1050 mm
Fixed table
B-axis swivel head
Dynamic package for X-axis
Work area partition wall
Touch probe
Laser tool measurement
Tool breakage detection
Electronic handwheel
Air blow through spindle
High-pressure coolant 40 / 80 bar
Coolant filtration system with band filter
Coolant tank capacity 1000 L
Chip flushing system
Rinse gun
Chip conveyor with discharge height 1250 mm
Cooling unit for drives and electrical cabinet
Automatic doors
A-axis rotary table Lehmann EA420 preparation
Clamping hydraulics for fixed and rotary table
Robot interface with support monitoring
Interpolation turning
High-speed settings
Compcad compressor function
3D machining
3D tool compensation
Automatic shutdown and automatic machine start
Oil and emulsion mist extraction system
