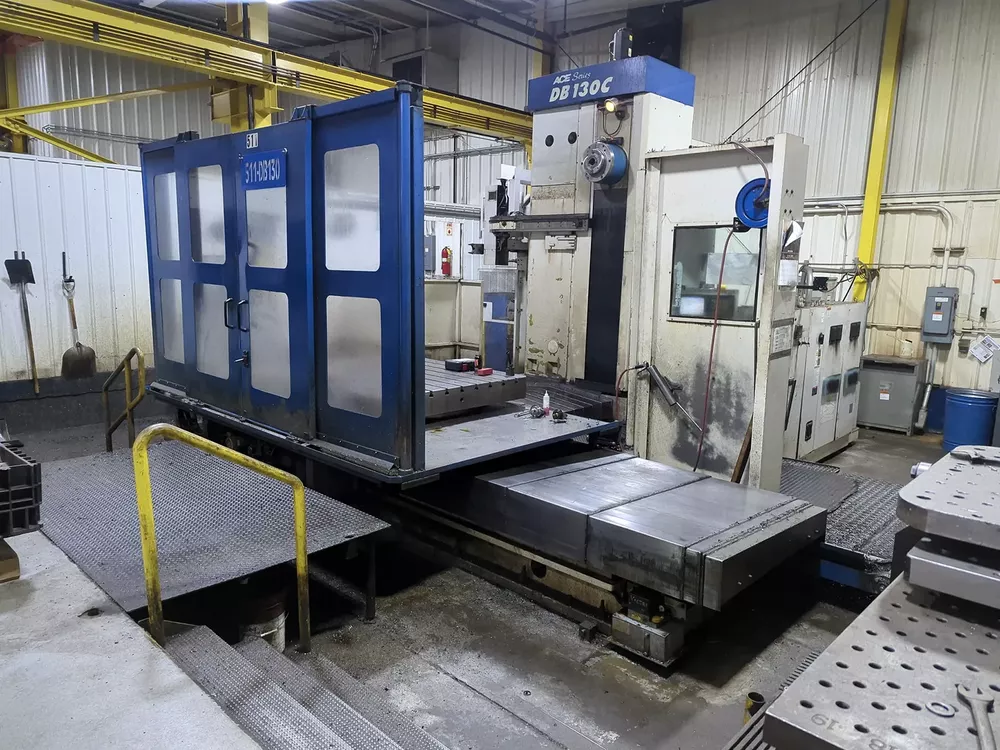

Doosan ACE DB130C 5.11" 2,500 RPM

Ref : 2750383-3-MT

Condition : Used

Manufacturer : Doosan

Model : ACE DB130C

Spindle Size : 5.11"

Spindle Speed : 2,500 RPM

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-Axis 118"
Y-Axis 78.8"
Z-Axis 63"
W-Axis 27.56"
B-Axis 0.001°

Fanuc 18i-M Control
Through Spindle Coolant
Spindle Size 5.11"
Spindle Power 35 hp
Spindle Speed 2,500 RPM
Spindle Taper ISO 50 - 7/24
Table Width 63"
Table Length 71"
Max Table Load 33,069 lbs
60-Position Tool Changer
Rapid Traverse 393 in/min
B-Axis Rotary Table
Spindle Chiller
Bolster Plates
Rigid Tapping
Chip Conveyor
Machine Dimensions 311" L x 264" W x 181" H
Manuals
