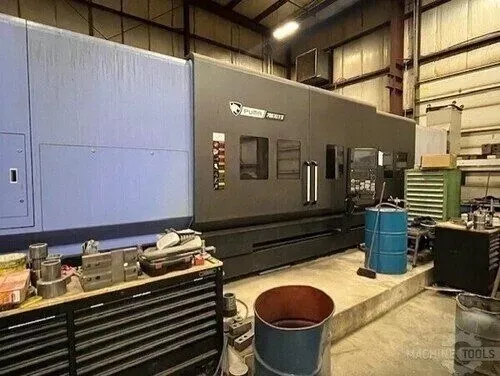

Doosan CNC (DN FANUC I PLUS CONTROL) 1,500 RPM DN SOLUTIONS Puma 700XLY II 5 Axis

DN SOLUTIONS Puma 700XLY II
Year: 2023

Swing Over Bed 44.9"
Turning Diameter 29.5"
Turning Length 199"
Chuck Size 1 24"
Spindle Nose 1 A1-15
Spindle Bore Diameter 1 7.1"
Bar Capacity 1 6.5"
Spindle Speeds 1 1,500 RPM
Spindle Horsepower 1 75 hp

B - Axis Milling Spindle Speed 3,000 RPM
B - Axis Milling Spindle Horse Power 14.8 hp
Tool Diameter 7.1"
Tool Weight 57,320 lb
X1 - Axis Travel 15.7"
Z1 - Axis Travel 201"
Y1 - Axis Travel 7.9"
C - Axis Indexing 1 0.00

Rapid Traverse Rate - X1 472.4 ipm
Rapid Traverse Rate - Z1 393.7 ipm
Rapid Traverse Rate - Y1 236.2 ipm
Turret Tool Positions 1 12 station

Tailstock Taper 6
Tailstock Quill Travel 5.9"
Programmable Tailstock 'Yes'
Tailstock Travel 192"
Control CNC (DN FANUC I PLUS CONTROL)
Dimensions 390" x 122" x 109"
24" HYDRAULIC CHUCK
CHIP CONVEYOR
HYDRAULIC STEADY REST
TOOL PRESETTER
