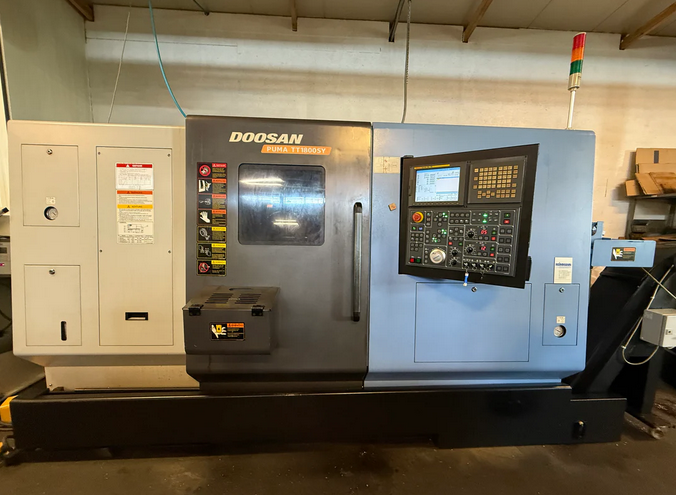

Doosan FANUC 18i-TB 5000 rpm PUMA TT 1800 SY 7 Axis

X1-axis travel 165 mm
X2-axis travel 190 mm
Y-axis travel 100 mm
Z1-axis travel 700 mm
Z2-axis travel 720 mm

Rapid traverse X 20 m/min
Rapid traverse Y 7.5 m/min
Rapid traverse Z 40 m/min
B-axis travel 770 mm
C-axis 360° (0.001° resolution)
Control FANUC 18i-TB
Bar passage 65 mm
Swing over carriage 230 mm
Maximum turning diameter 230 mm
Maximum turning length 230 mm
Spindle bore 76 mm
Spindle nose BMT55
Spindle speed 5000 rpm
Spindle motor power 22 kW
Back spindle speed 5000 rpm
Back spindle motor power 22 kW
Turret 1 positions 12
Turret 2 positions 12
Driven tools turret 1 12
Driven tools turret 2 12
Voltage 400 V 50 Hz
Total power required 75 kVA
Machine weight 7800 kg
Machine dimensions 3905 x 2070 x 2080 mm
Operating time 3003 h

Set of collets
Lamp
Coolant system 290 l
Bar feeder LNS SPRINT 552-565
Electronic handwheel
Chip conveyor LNS Turbo
Set of toolholders
Status light
