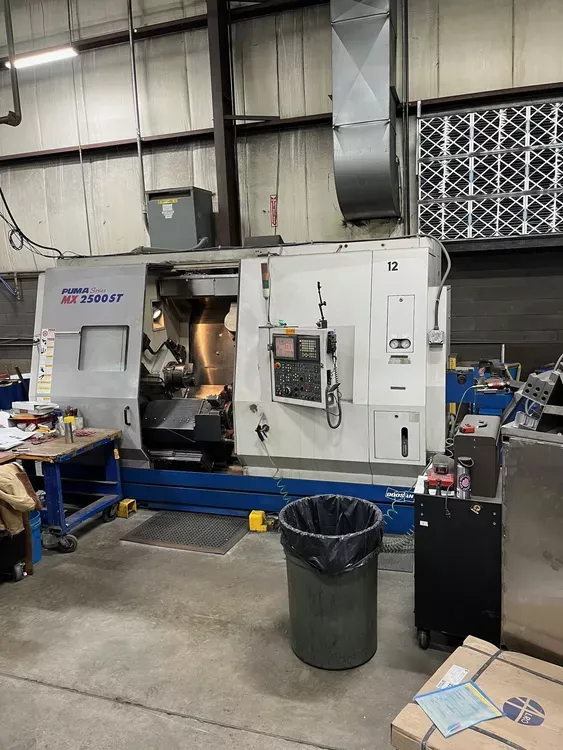

Doosan FANUC 18i-TB CNC Color Control 3500 RPM PUMA MX2500ST 7 Axis

Rapid Traverse X1: 945 ipm
Rapid Traverse X2: 945 ipm
Rapid Traverse Z1: 945 ipm
Rapid Traverse Z2: 945 ipm
Rapid Traverse Y1: 630 ipm
X1 Axis Travel: 21.85"
X2 Axis Travel: 7.48"
Z1 Axis Travel: 43.1"
Z2 Axis Travel: 40.9"
Y1 Axis Travel: 6.3"
B Axis Full Contouring
B Axis Indexing: 0.00
C Axis Indexing Spindle 1: 0.00
C Axis Indexing Spindle 2: 0.00
Control: FANUC 18i-TB CNC Color Control
Tool Setter
Twin Auto Tool Setter
Chip Conveyor
Swing Over Bed: 29.5"
Turning Diameter: 23.6"
Turning Length: 52.9"
Distance Between Spindles: 52.9"
Bar Capacity: 2.6"
Spindle Speed Main: 3500 RPM
Spindle Power Main: 35 HP
Spindle Nose Main: A2-8
Spindle Speed Sub: 3500 RPM
Spindle Power Sub: 35 HP
Spindle Nose Sub: A2-8
Milling Spindle Speed: 4000 RPM
Milling Spindle Power: 7.5 HP
Milling Spindle Taper: Capto C6
ATC For Milling Spindle: 40 Tools
Turret Positions Upper: 12
Lower Turret Option: 12 Positions
Lower Turret Milling Capability: BMT65
Rotary Tool Speed: 5000 RPM
Rotary Tool Power: 7.5 HP
Tool Diameter Max: 3.54"
Tool Diameter Max (Alt): 4.72"
Tool Length Max: 11.8"
Tool Weight Max: 17.6 lb
Chuck Size Main: 10"
Chuck Size Sub: 10"
Machine Weight: 27500 lb
