Finn Power C5-Compact Express
United States (USA)
Reference #32444
33 Ton Finn-Power C5 CNC Turret Punch Press w/Load-Unload
FEATURES:
Siemens 840D CNC Control
Compact Express Load/Unload Cell
20 Station Turret (Amada Style Thick)
(4) Auto-Index Stations
(4) Multi-Tool Stations (2) 10 Punch, (2) 8 Punch)

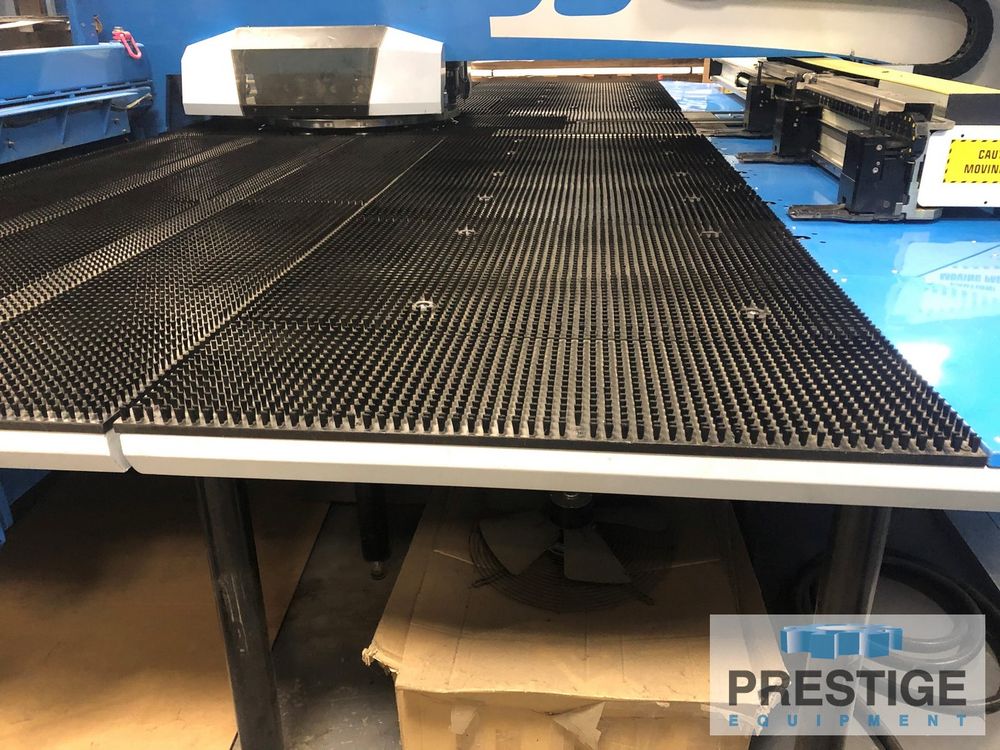

Brush Table Design
(3) Pneumatic Programmable Clamps
CAPACITY:
Tonnage Capacity ...................... 33 Tons
Max. Material Thickness ............... .31"
Max. Punch Diameter ................... 3.5"
Maximum Sheet Size .................... 50" x 100"
Y-Axis Travel ......................... 51"
X-Axis Travel ......................... 101.7"
Hits Rate, Nibbling (.039" Moves) ..... 1100 SPM
Hits Per Min (.98" Moves) ............. 420 SPM
Max. Positioning Speed ................ 354 IPM
Machine Weight ........................ 23,132 Lbs
EQUIPPED WITH:
Siemens 840D CNC Control
Compact Express Load/Unload Cell
20 Station Turret (Amada Style Thick)
(4) Auto-Index Stations
(4) Multi-Tool Stations (2) 10 Punch, (2) 8 Punch)
Brush Table Design
(3) Pneumatic Programmable Clamps
(2) Slug Conveyors
(2) Trap Doors
NOTE:
Hydraulics Rebuilt 2017
